Do I Need a Contour Survey Before Building?

Do I Need a Contour Survey Before Building?

A block can look flat from the street and still have enough fall to affect a slab, driveway, drainage design, retaining walls and council approval. If you are asking, do I need a contour survey, the practical answer is usually yes when you are designing, building, extending, subdividing or making meaningful changes to a site.

A contour survey gives your project team a measured picture of the land before design decisions are locked in. It identifies levels, slopes, visible structures and site features so an architect, builder or engineer is working from reliable information rather than assumptions, old plans or a quick visual inspection.

What is a contour survey?

A contour survey, also called a detail and contour survey or topographic survey, records the physical features and ground levels across a property. The finished plan uses contour lines and spot levels to show changes in elevation, along with details such as buildings, fences, driveways, retaining walls, trees, kerbs, stormwater pits, services visible at the surface and nearby road levels.

On the Central Coast, this information is particularly useful. Many sites have coastal fall, drainage constraints, bushland edges, steep access, existing retaining structures or older development that does not neatly match available records. Even a modest level change can influence where a building sits, how water moves through the site and whether excavation costs increase.

The survey is completed using professional survey equipment and tied to suitable reference points. It is not the same as a real estate site plan, an aerial image or a sketch prepared for an early feasibility discussion. Those documents can be useful background, but they should not be used as the basis for set-out, engineering or final design.

Do I need a contour survey for my project?

You will generally need a contour survey before engaging an architect or building designer for anything beyond a very simple proposal. Designers need existing levels to establish finished floor levels, building height, cut and fill requirements, access and drainage. Without them, the first design may be based on estimates and require revision once the actual site is measured.

For a new home, dual occupancy, granny flat, major extension or knock-down rebuild, a detail and contour survey is usually one of the first consultant inputs. It gives the design team the information needed to test setbacks, site coverage, private open space, overlooking, solar access and the relationship between the proposed building and the street.

It is also commonly required for development applications, complying development documentation and construction certificates, depending on the proposal and approval pathway. Your architect, planner, certifier or council requirements will confirm the exact documentation needed, but obtaining the survey early avoids holding up their work.

A contour survey is especially worthwhile if your site includes any of the following:

  • noticeable slope, a retaining wall or stepped ground
  • a driveway that needs to meet the road or garage at a workable grade
  • drainage problems, low points or nearby watercourses
  • a waterfront, coastal or bushfire-prone setting
  • established trees, significant landscaping or old structures
  • plans for excavation, a pool, basement, deck or retaining walls
  • a subdivision, road access issue or civil works.

Flat sites can still benefit. A few hundred millimetres of fall across a building footprint may affect drainage and slab design. On a constrained urban block, accurate locations of existing buildings, eaves, fences and service structures can be just as valuable as the contours themselves.

When a contour survey may not be necessary

Not every job requires a full topographic survey. Replacing like-for-like internal fittings, repainting, undertaking minor repairs or building a small non-structural improvement may not need one. A straightforward fence replacement may instead need boundary information, particularly if the fence position is disputed or intended to sit on the legal boundary.

The key distinction is that a contour survey records physical features and levels. It does not, by itself, establish the legal boundary. If your project depends on knowing exactly where the title boundary is, such as a new boundary fence, encroachment concern, building close to a side boundary or a property purchase issue, you may need a cadastral boundary mark-out or identification survey as well.

In some cases, both are sensible. For example, a new dwelling close to side setbacks needs reliable boundary definition, while the architect and engineer also need detailed site levels. Ordering the right surveys together at the outset can prevent design changes later.

What your designer and builder use it for

A quality contour survey is a working document for the whole consultant team. Architects use it to fit the building to the site. Engineers use it to design stormwater, retaining, footings and driveway grades. Town planners use it to assess planning controls, and builders use it to price earthworks and understand access constraints.

The biggest benefit is fewer surprises. If a proposed garage floor is designed without accurate road levels, it may later be found to have a driveway that is too steep, poor drainage at the threshold or an impractical amount of excavation. If existing retaining walls are missed, their condition and impact on construction may only become apparent after prices have been obtained.

Accurate survey information also helps project teams communicate. Rather than working from separate sketches and assumptions, everyone can refer to the same measured base plan. That makes coordination between the owner, architect, structural engineer, civil engineer, certifier and builder more efficient.

Contours, drainage and building levels

Water follows levels, not intentions. A contour survey shows where stormwater is likely to flow and where low points occur, allowing the drainage design to respond to the actual site. This matters on sloping blocks, but it matters just as much on sites that appear level and have poor surface drainage after heavy rain.

For new buildings, survey levels help establish a suitable finished floor level. That level needs to consider the existing ground, drainage paths, adjoining properties, road levels, flood information where relevant and the proposed building form. Raising a floor can improve drainage resilience, but it may create other issues around building height, access, stairs, retaining and cost. The survey provides the starting data for balancing those decisions.

It can also reveal practical construction considerations. A builder can see whether machinery access is limited, whether spoil removal may be required and whether the proposed works are likely to affect existing structures. Early visibility does not eliminate every site risk, but it gives the project team a far stronger basis for planning.

How early should you arrange the survey?

Arrange the contour survey before significant design work begins. Waiting until plans are nearly complete often means the design must be redrawn to suit actual levels, setbacks or features identified on site. That costs time and can affect consultant fees, approval timing and construction pricing.

Ideally, your surveyor receives a clear project brief before attending site. Let them know whether you are planning a new home, extension, pool, subdivision, driveway, commercial works or another type of development. They can then ensure the scope captures the features your project team is likely to need.

For a site with a boundary question, provide any available title documents, deposited plans or previous survey records. A registered surveyor can advise whether the project requires a detail and contour survey only, an identification survey, a boundary mark-out or a combined scope.

Choosing the right survey scope

The cheapest quote is not always the most useful survey. A plan that omits relevant features, does not extend far enough into the road reserve or lacks enough levels for drainage design can create more work later. The right scope should reflect the proposal, not simply the property size.

Ask whether the survey will include the building footprint area, adjoining features that affect design, road levels, visible services, trees where relevant and sufficient detail for the intended consultant team. If you are planning a pool or extension, the survey area may not need to cover every corner of a large rural holding. Conversely, a subdivision or new dwelling may require wider coverage and more detailed information.

Central Coast Surveyors can coordinate survey requirements with your architect, engineer or planner, helping ensure the base information is suitable for the next stage rather than becoming a delay point between consultants.

A measured start saves costly changes

A contour survey is not simply a box to tick for an application. It is the measured foundation for decisions that affect design quality, approval confidence and construction cost. When a site is understood early, your project team can design for its real conditions and move forward with fewer avoidable changes.

A Practical Guide to Cadastral Boundary Surveys

A Practical Guide to Cadastral Boundary Surveys

A fence that appears to divide two properties is not necessarily the legal boundary. It may have been built for convenience, shifted during earlier works, or placed before the land was formally subdivided. This guide to cadastral boundary surveys explains how legal boundaries are found, why the work matters before building or fencing, and what Central Coast property owners can expect from a registered surveyor.

What is a cadastral boundary survey?

A cadastral survey establishes, reinstates or defines the legal boundaries of land. It is the survey work behind property titles, subdivisions, easements and boundary mark-outs. In practical terms, it answers a question that can carry significant cost: where does your land legally begin and end?

The surveyor does not simply measure from an old fence or rely on the dimensions shown on a sales contract. They assess the title, deposited plans, survey records, adjoining parcels and physical evidence on site. Existing survey marks, such as pegs, pipes, drill holes or reference marks, are located and assessed alongside the legal records.

In NSW, cadastral work is undertaken by a registered surveyor. Registration matters because the result may support a subdivision plan, an easement, a boundary definition or construction work that must be positioned correctly in relation to title boundaries.

Why a title plan is not enough

Many owners assume the plan attached to their title will let a builder, fencer or homeowner measure out a boundary. It generally will not. Deposited plans are legal documents, but the drawing itself is not a scaled set-out plan for use on the ground. It must be interpreted with the relevant survey information and evidence.

A cadastral boundary survey considers more than the dimensions printed on a plan. A surveyor may need to review historical plans, field notes, adjoining titles and records held through NSW Land Registry Services. The hierarchy and quality of available evidence can affect how a boundary is re-established.

This is particularly relevant on older Central Coast properties, where original marks may be disturbed, buried, missing or affected by past building works. Sloping sites, waterfront land and irregular older subdivisions can add further complexity. The process is evidence-based, not an estimate based on a tape measure.

When should you arrange a boundary survey?

The right time depends on the project, but arranging the survey early usually prevents expensive changes later. A boundary survey is commonly needed before a new fence is installed, an extension is designed close to a side boundary, a garage or shed is set out, or a retaining wall is planned.

It is also important where an existing building appears close to a boundary, particularly when applying for a council building certificate or investigating a possible encroachment. For development and subdivision projects, cadastral information forms a critical foundation for planning, design and registration.

A boundary survey is often worthwhile during a property purchase where there is uncertainty about fencing, access, occupation or the location of improvements. It can clarify the position before a disagreement, construction commitment or transaction creates pressure.

Common project triggers

Boundary work is regularly requested for fencing disputes, building set-out, new dwellings, decks, swimming pools, boundary adjustments, easement creation and Torrens title subdivisions. It may also be required for identification surveys, particularly where a solicitor, lender, purchaser or council needs confirmation of improvements in relation to the land title.

The required scope differs between these jobs. A simple boundary mark-out may be suitable for a straightforward fencing decision, while an identification survey or subdivision requires more detailed work and formal documentation. Explaining the purpose at the outset helps the surveyor recommend the appropriate service rather than producing information that is either insufficient or unnecessarily broad.

How cadastral boundary surveys are completed

A reliable cadastral survey follows a defined sequence. The exact method varies with the age of the title, site access, terrain and the availability of original marks, but the work generally begins well before the survey team arrives on site.

1. Title and survey records are investigated

The surveyor obtains and reviews the current title and relevant deposited plans. They investigate earlier survey information and records that may identify original marks, dimensions, bearings, easements and relationships to adjoining land.

This research is essential. A mark found in the ground only has meaning when it is considered against the legal survey evidence. A peg near a fence may be an original boundary mark, a later replacement mark, a construction reference or unrelated site debris.

2. The site is measured and physical evidence is assessed

On site, the survey team searches for boundary marks and measures the property using professional surveying equipment. Modern Trimble technology assists with precise field observations, but technology does not replace professional judgement. The surveyor must assess whether the marks and measurements reconcile with the legal definition of the parcel.

Features such as fences, walls, buildings, kerbs and occupation lines are also located where relevant. These features can reveal differences between apparent occupation and the legal boundary. They are useful evidence, but they do not automatically determine ownership.

3. The boundary is calculated and checked

Field measurements and documentary evidence are processed, tested and reconciled. If the available evidence is clear, the surveyor can determine the boundary position and place or identify marks accordingly. If evidence is missing or inconsistent, further investigation may be needed.

This is one reason turnaround times can vary. A regular suburban lot with accessible marks is often more straightforward than a large rural parcel, an old subdivision with limited surviving evidence, or a site where dense vegetation and structures obstruct access.

4. Marks, plans or reports are provided for the project

The final output depends on the brief. For a boundary mark-out, visible marks may be placed or pointed out so a fence contractor or builder can work from the correct line. For an identification survey, the client may receive a plan showing title boundaries, buildings and relevant encroachments or offsets.

For subdivision, the surveyor prepares the cadastral plan and coordinates the survey component through the approval and registration process. This may involve working closely with planners, engineers, architects, certifiers and NSW Land Registry Services.

What a boundary mark-out can and cannot do

A boundary mark-out is one of the most practical applications of cadastral surveying. Once the boundary has been determined, a registered surveyor can mark key corners or line points on the ground. This gives contractors a dependable reference before fencing, excavation or construction begins.

However, a mark-out does not resolve every property issue. It does not decide ownership of a disputed strip of land, provide legal advice on adverse possession, or settle a neighbour dispute by itself. If an occupation line differs from the title boundary, legal advice may be required alongside the survey evidence.

Similarly, a boundary survey does not replace the need for planning approval, building approval or checks against setbacks, easements and zoning controls. It provides accurate land information so those decisions can be made on a sound basis.

Avoiding costly boundary mistakes

The most common mistake is treating a visible fence as proof of title. Another is starting design work before the boundaries are known. A proposed extension may comply with a designer’s assumed setback but prove unworkable once the legal boundary is located.

Owners should also avoid removing old pegs, pipes or survey marks. They may be important evidence for future surveying work, even if they do not look significant. If site works are planned, ask the surveyor which marks need protection and ensure contractors understand their location.

Clear access helps the survey proceed efficiently. Before the site visit, remove reasonable obstructions where safe to do so, arrange access to locked areas and tell the surveyor about dogs, steep ground, dense vegetation, recent earthworks or known old marks. Where access to neighbouring land may be useful, early communication can reduce delays, although a surveyor can advise what is necessary for the specific job.

Choosing the right surveyor in NSW

For legal boundary work, check that the surveyor is registered in NSW and experienced in cadastral surveying. Local knowledge is valuable too. Familiarity with Central Coast subdivisions, council processes and the typical challenges of coastal, bushland and sloping sites can make coordination more efficient.

Ask what the scope includes, what documents or marks you will receive, whether adjoining land needs to be accessed, and how the result will support the next stage of your project. If you are working with an architect, builder or planner, nominate them early so the survey information can be issued in a format they can use.

Central Coast Surveyors can coordinate cadastral boundary work with detail surveys, identification surveys, construction set-out and subdivision surveying, helping reduce the handover points that often slow a project down.

Before you commit to a fence, footing or final design line, make sure it is tied to the legal boundary rather than an assumption. A timely cadastral survey gives every person involved in the project the same reliable starting point.

Best Survey for Backyard Subdivision in NSW

Best Survey for Backyard Subdivision in NSW

A backyard subdivision can look straightforward from the fence line: there seems to be enough room for a second dwelling, access down the side and a clear place for a new lot boundary. On paper, however, the best survey for backyard subdivision depends on what must be designed, approved and legally created. Starting with the wrong information can cause redesigns, council delays and expensive surprises once construction is underway.

For most Central Coast properties, the right starting point is a detailed topographical survey combined with reliable boundary information. The exact scope may then expand to include an identification survey, easement work, subdivision plan preparation and construction set-out. The key is to match the survey to the stage of the project rather than treating every survey as the same service.

What is the best survey for a backyard subdivision?

For early feasibility and design, a detail and contour survey is generally the most useful survey. It gives your architect, building designer, town planner and civil engineer an accurate base plan of the existing site. This includes levels, buildings, fences, driveways, trees, retaining walls, drainage features, visible services and other site constraints that influence the proposed layout.

A good topographical survey shows far more than whether a new dwelling will physically fit. It helps the design team assess driveway grades, stormwater drainage, cut and fill, private open space, vehicle access and the likely position of new services. On sloping Central Coast blocks, accurate contours are especially important. A concept that looks workable on an aerial image may require substantial retaining, difficult drainage solutions or a driveway that does not meet relevant design requirements.

That said, a detail and contour survey alone does not prove where the legal boundary sits. If the proposed new lot line, building location, access handle or easement is close to a boundary, a registered surveyor may need to investigate and mark the cadastral boundary. This is where an identification survey or boundary survey becomes essential.

Why aerial imagery and old plans are not enough

Property owners often begin with online mapping, a deposited plan from a previous purchase or measurements taken from an existing fence. These can be helpful for an initial conversation, but they are not suitable for subdivision design or legal boundary decisions.

Fences regularly sit inside or outside the true boundary. Older plans may not show later structures, retaining walls, drainage works or changes to neighbouring land. Mapping imagery can also be offset from the actual cadastral position. Designing a dwelling, driveway or new lot around assumptions can lead to encroachments, unusable setbacks and delays when the formal subdivision plan is prepared.

A registered land surveyor assesses the relevant title information, existing survey marks and field measurements to determine how the property boundaries relate to the site. This work provides dependable information for your consultant team and prevents a costly problem from being discovered late in the approval process.

The surveys commonly needed from feasibility to new title

Backyard subdivision is a process, not a single drawing. The survey requirements change as the project progresses.

Detail and contour survey for design

This is normally the first field survey. It records the physical features and levels across the site and, where needed, adjoining features that affect the proposal. Your architect or designer uses it to prepare concept plans, while the planner and engineer use it to assess constraints and servicing.

Ask for enough detail to suit the intended development. For example, a battle-axe subdivision may need careful pickup of existing driveways, kerbs, poles, pits, drainage paths and neighbouring structures near the proposed access. A corner block may need accurate information about both street frontages and any existing vehicle crossings.

Identification or boundary survey for confidence around title lines

An identification survey identifies the relationship between visible occupation, such as fences and buildings, and the legal boundaries of the land. It is particularly valuable where an existing dwelling is close to a side boundary, where a fence is likely to become the division between lots, or where a new building is proposed near a title line.

The level of boundary work needed depends on the proposal and available evidence. A simple rear-lot subdivision on a large, well-defined site may require different investigation from an older property with missing survey marks, irregular boundaries or structures close to the proposed new lot line.

Subdivision survey and plan preparation

Once a development pathway is established and approvals are in place, the registered surveyor prepares the legal subdivision documentation. This may involve a plan of subdivision for Torrens title land, or different survey and plan requirements for strata or community title developments.

The plan must accurately create the proposed lots, identify new boundaries and deal with any required easements or restrictions. It is then lodged through the required NSW registration process after relevant certifications and approvals have been obtained. This is legal land definition, not simply a copy of an architectural site plan.

Easement surveys where access or services cross land

Many backyard subdivisions require easements. These can be needed for drainage, sewer, electricity, water, access or support of structures, depending on the site and servicing strategy. An easement may affect the placement of buildings, pools, landscaping and future additions, so it should be considered early rather than added as an afterthought.

The surveyor works with the project team to define the easement location accurately and prepare the plan documentation required for registration. Early coordination is critical where an existing or proposed service route does not sit neatly within the new lot boundaries.

Construction set-out and final survey work

After approval, surveying continues to protect the design on site. Construction set-out places key building, boundary and infrastructure positions accurately for builders and contractors. This is particularly useful when clearances are tight, retaining walls are proposed or a driveway must follow a specific alignment and grade.

Final survey work may also be needed to verify completed works, floor levels or built positions for certification, compliance and registration purposes. Keeping the same surveying team involved from the initial survey through to final plans reduces the risk of mismatched information between project stages.

Factors that change the scope and cost

There is no one-size-fits-all answer because every allotment has different physical and title constraints. The best approach is to obtain a scope based on the actual site, intended subdivision type and approval pathway.

Four issues usually have the greatest effect on survey requirements:

  • Site shape and slope: Narrow, irregular or steep blocks need more detailed level and feature information to test access, drainage and building platforms.
  • Boundary evidence: Missing marks, old subdivisions and inconsistencies between fences and title boundaries can require additional cadastral investigation.
  • Existing structures: Homes, garages, pools, retaining walls and sheds near proposed boundaries need accurate location to avoid setbacks or encroachment issues.
  • Servicing and access: Drainage routes, sewer locations, driveway design and easements can affect both the subdivision layout and legal plan requirements.

A quick, low-cost survey that misses key constraints may not be economical if it forces the design team to return to site, redraw plans or adjust a lodged application. The better value is accurate information delivered early enough for informed decisions.

When should you engage a surveyor?

Engage a surveyor before spending heavily on architectural drawings or lodging a development application. A preliminary conversation with a registered surveyor can clarify what information the design team needs and whether boundary work should be completed with the detail survey.

This is also the right time to coordinate with your planner, architect or building designer. They may have specific council controls or design questions that the survey needs to address. Clear communication at this stage avoids duplicate site visits and gives every consultant a consistent, accurate base plan.

If you are considering a duplex, detached dual occupancy, rear-lot subdivision or a secondary dwelling that may later form part of a broader development strategy, explain the longer-term goal from the outset. The current approval and title pathway may be different, and early survey advice can help avoid making decisions that limit future options.

Choosing a surveyor for a Central Coast subdivision

For subdivision work in NSW, use a registered land surveyor with experience in both site measurement and cadastral plan preparation. Registration matters because boundary definition and subdivision plans involve legal land matters, not only the collection of levels and features.

Look for a consultant who can explain the scope in plain language, provide data suitable for your other consultants and remain involved through the project. Fast turnaround is valuable, but accuracy, local knowledge and responsive coordination are what keep an approval and construction programme moving.

Central Coast Surveyors can assist from the first detail and contour survey through boundary investigation, easement creation, subdivision plan preparation, construction set-out and NSW title registration. The practical advantage is continuity: your project team works from reliable survey information at every critical stage.

Before sketching the new driveway or choosing where the second dwelling will sit, arrange a site-specific survey discussion. A clear understanding of levels, boundaries and servicing early in the process gives your project the best chance of progressing without avoidable redesigns later.

Topographic Surveys for Central Coast Projects

Topographic Surveys for Central Coast Projects

A contour shown 300 mm out of position can change a driveway grade, drainage solution, retaining wall height or finished floor level. That is why topographic surveys are usually the first technical step for a Central Coast development, renovation or construction project. They give the design team a reliable picture of the land before plans are drawn, costs are committed or work begins on site.

For homeowners, this may mean knowing whether a proposed extension works with the slope of the block. For architects, builders and engineers, it means having coordinated site data they can design and set out from with confidence. The quality and scope of the survey directly affect the decisions that follow.

What a topographic survey shows

A topographic survey, often called a detail and contour survey, records the shape of the land and the physical features that may affect a proposal. The final plan presents measured information in a form that architects, planners, engineers and certifiers can use for design, approvals and construction planning.

The survey will typically show contours or spot levels across the site, building footprints, fences, driveways, kerbs, paths and retaining walls. It can also locate visible services and drainage structures, trees, rock outcrops, pools, sheds, walls, power poles and other relevant improvements. Road features, adjoining structures and available survey marks may be included where they influence the design outcome.

The required scope depends on the project. A compact residential block may need a focused survey of the lot, street frontage and immediate adjoining conditions. A sloping acreage, waterfront property or subdivision site may require a wider survey extent, more detailed level coverage and information beyond the title boundary.

A topographic survey is not automatically a boundary definition or an identification survey. While it may show apparent fencing and occupation, those features do not establish the legal boundary. Where boundary position, encroachments, building certificates, a sale or title matter is involved, a separate cadastral or identification survey may be needed.

When topographic surveys should be commissioned

The best time to arrange a survey is before design starts, not after preliminary plans have been developed around assumptions. Early site data helps the design team work with real levels and constraints from the outset, reducing redesign when the site conditions are later confirmed.

Before architectural and engineering design

Architects need accurate levels, building locations and site features to position a new dwelling, alteration, duplex or commercial building. Civil and structural engineers rely on the same information to develop drainage, earthworks, retaining, access and footing designs.

On the Central Coast, changes in level can be significant even within a standard residential lot. A survey that captures the existing ground properly helps determine whether a split-level solution, retaining wall, compliant driveway or cut-and-fill approach is practical before plans are finalised.

For development applications and approvals

Councils and certifiers often require plans that reflect the existing site conditions. A current survey provides the base information for site plans, shadow diagrams, stormwater design and documentation supporting a development application or complying development proposal.

Requirements vary according to the site, proposal and approval pathway. Flood-affected land, bushfire-prone areas, waterfront sites and properties with difficult access can involve additional consultant input. A clear survey brief allows the necessary information to be captured efficiently and issued in a format that works for the broader consultant team.

Before construction and site set-out

Builders use topographic information to understand access, levels and likely site works before quoting and programming construction. Once the design is approved, construction set-out translates the approved plans to the ground. Starting with a dependable survey reduces the risk that the set-out is based on unsuitable or incomplete background information.

It is also useful for renovation projects. Existing house levels, floor levels, roof features and nearby structures may be critical when planning additions, decks, garages, pools or secondary dwellings.

The site information that makes a difference

Not every visible feature needs to appear on every plan, but missing the wrong feature can create a costly problem. Before fieldwork begins, the surveyor should understand what is being designed and which consultants will use the data.

For a typical building project, the survey scope may include:

  • contours and spot levels across the site and relevant road frontage;
  • existing buildings, floor levels, rooflines and major structures;
  • visible drainage pits, service covers, poles, overhead wires and utility features;
  • fences, retaining walls, driveways, paths, vegetation and surface materials; and
  • relevant adjoining features, including building locations and levels where accessible or visible.

Visible services should not be confused with a full underground services investigation. A survey can locate what is apparent above ground and identify visible lids, pits and markers, but it does not prove the route or depth of buried assets. Where excavation is proposed, service searches and specialist locating may be required before work proceeds.

Similarly, trees can be recorded to suit a design or arborist brief, but the required level of detail should be agreed first. Tree position, trunk diameter, canopy spread and height are different data points, and the right approach depends on council requirements and the proposed works.

How the survey process works

A well-managed survey starts with the right documents. Providing the current plans, property address, lot details, any previous survey information and a short description of the proposal helps the survey team set the correct scope. Access arrangements matter too, particularly where the property is occupied, gated or includes areas that cannot be safely observed from the street.

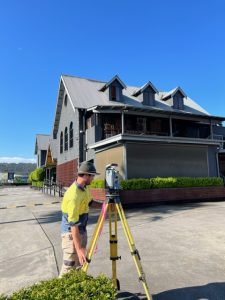

On site, surveyors use modern equipment such as GNSS, total stations and digital data capture systems to measure features and levels accurately. Trimble surveying technology supports efficient field collection and integration with established control, but technology is only part of the outcome. The survey must be planned, checked and interpreted by people who understand the site, the purpose of the work and NSW surveying requirements.

The field data is then processed into a scaled plan. Depending on the brief, the deliverable may be supplied as a PDF for review and as a CAD file for architects, engineers or planners. Levels are commonly presented relative to Australian Height Datum where suitable control is available, allowing different consultant drawings to work from a consistent vertical reference.

Turnaround depends on site size, access, vegetation, the amount of detail required and current project demands. Straightforward residential sites can often be completed promptly, while large, steep, heavily vegetated or complex sites need more field time and checking. Fast delivery is valuable, but a rushed survey that misses critical features can delay the project later.

Accuracy, scope and cost: the practical trade-off

A survey does not need to capture every item on a property. It needs to capture the information necessary for the intended decision. Over-scoping can add cost without improving the design. Under-scoping often leads to an architect or engineer requesting further site work after the design has already started.

For example, a basic survey for preliminary feasibility may not require roof details or extensive adjoining information. A detailed survey for a new home on a constrained site may need floor levels, ridge levels, retaining walls, drainage, visible services and street data. If the project involves an existing building, the relationship between internal floor levels and external ground levels can be especially important.

Tell the surveyor if the project includes a pool, basement, drainage design, subdivision, waterfront works, a new driveway or substantial earthworks. Each can change the survey extent and detail required. This is not about adding unnecessary items. It is about issuing usable information once, rather than discovering a gap when another consultant is waiting on it.

Choosing the right survey partner

The survey should fit within the wider project sequence. A capable local surveying consultancy can coordinate with the architect, town planner, engineer, builder and certifier, ensuring the deliverable is appropriate for the next stage rather than simply producing a generic plan.

Ask whether the surveyor has experience with comparable Central Coast sites and whether they can assist beyond the initial detail survey if the project progresses. Boundary mark-outs, construction set-out, floor level reports, subdivisions and final plans each require different expertise, but continuity across those stages can reduce duplicated information and avoidable delays.

For title, boundary and subdivision matters, registered surveying expertise is essential. Registered surveyors are qualified to undertake cadastral work that affects legal boundaries and plans lodged with NSW Land Registry Services. Knowing when a topographic survey is enough – and when a separate legal boundary service is required – protects the project from assumptions that are expensive to correct.

Central Coast Surveyors approaches the initial site survey as working project information, not a stand-alone drawing. The aim is to give every consultant a clear, accurate base from which to make the next decision.

Before finalising a design fee, arranging a builder’s quote or lodging an application, make sure the site is understood in measured terms. A properly scoped topographic survey gives the project a sound starting point and lets the rest of the team move forward with fewer surprises.

Council Building Certificate Survey Explained

Council Building Certificate Survey Explained

A building certificate application can stall quickly when council needs clear evidence of where an existing building sits in relation to the title boundaries. A council building certificate survey provides that evidence. It is commonly an identification survey prepared by a registered land surveyor, showing the parcel boundaries and the position of buildings and other relevant improvements.

For Central Coast property owners, this is often required when a building was completed without the expected approvals, when records are incomplete, or when council needs reliable information before deciding a building certificate application. The survey does not guarantee that council will issue a certificate. It gives council, and the professionals advising you, an accurate legal and spatial basis for assessing the property.

What a council building certificate survey shows

A building certificate is issued by the local council under the NSW planning framework. It generally confirms that, at the time it is issued, council will not take certain enforcement action in relation to the building for a specified period. Council assesses the application and may request plans, reports, photographs, compliance information and a survey, depending on the property and the work involved.

Where a survey is requested, an identification survey is usually the appropriate starting point. It is not a simple tape measure exercise or a sketch based on online mapping. A registered surveyor researches the title and relevant survey records, locates or reinstates boundary evidence, and measures the site using survey-grade equipment.

The resulting plan can show:

  • title boundaries and dimensions, including relevant easements or restrictions
  • existing buildings, additions, decks, garages, sheds and other structures relevant to the application
  • offsets from buildings to boundaries, so setbacks and encroachments can be assessed
  • fences, retaining walls and visible occupation where these help explain the site arrangement
  • any apparent encroachment over a boundary or into an easement.

The exact content should be matched to council’s request and the nature of the building certificate application. A small older shed and a dwelling with several unapproved additions do not necessarily need the same level of detail. Obtaining the council request before commissioning the work helps avoid duplicated surveys and unnecessary cost.

Why council needs a registered survey

Council records, aerial imagery and old building plans can be useful, but they are not a substitute for a current boundary-based survey. Aerial images can be distorted, old plans may not reflect later additions, and a fence is not proof of a legal boundary. These differences matter when a wall, eave, gutter or deck is close to a side boundary.

An identification survey establishes the relationship between the improvements on the ground and the cadastral boundaries of the land. That information can identify issues early, including a carport built too close to the boundary, a garage partly over an easement, or a neighbour’s structure encroaching onto the title.

Finding an issue is not the same as determining the solution. Council may need further information from a building certifier, architect, engineer, planner or solicitor. In some cases, the answer may involve amended plans, a compliance assessment, an easement, neighbour discussions or a separate approval pathway. The value of the survey is that everyone is working from measured facts rather than assumptions.

When to arrange the survey

The best time is usually as soon as council indicates that a survey is required, or earlier if you know the building is close to a boundary and its approval history is unclear. Waiting until the rest of the application is ready can create avoidable delays, particularly where boundary marks are missing or additional research is needed.

Property owners also commonly arrange a survey before lodging an application where they have bought an older home, inherited a property, or are trying to resolve approval questions before a sale. It provides a clearer picture of the site before design, legal or compliance costs begin to build.

For builders, architects and planners, an early survey makes coordination easier. Setback dimensions on concept drawings should be based on reliable boundary information, not on an assumed fence line. If the project later needs a building certificate for existing work, having an accurate survey already available can save time and reduce redesign risk.

The survey process on the Central Coast

A practical survey process starts with a clear brief. Provide the council letter or request for information, property address, any historic plans you hold, and details of the structures that are part of the application. If there are access limitations, locked gates, tenants or dogs on site, mention these when booking.

A registered surveyor then reviews title information and available survey records before attending the site. On site, the survey team searches for boundary marks and measures the land, structures and relevant features. Modern Trimble survey equipment helps capture precise field data efficiently, but sound cadastral interpretation remains essential. Technology records measurements; the registered surveyor determines how the evidence fits the legal boundary.

After the fieldwork, the survey is calculated, checked and drafted into a plan suitable for the agreed purpose. If the work identifies a concern, it is better to know promptly. Early communication allows your wider consultant team to assess the impact before it becomes a late-stage surprise in the council process.

Turnaround depends on site size, access, the availability of survey evidence, the complexity of buildings and the level of detail required. A straightforward residential site can be completed more quickly than a large waterfront property, a site with difficult terrain, or land where boundary marks need to be carefully reinstated. A clear brief at the outset is the most reliable way to keep the work moving.

Common issues a building certificate survey can uncover

Close boundary clearances are a frequent issue, particularly on established Central Coast sites where houses have been extended over decades. Eaves, gutters, air-conditioning units, decks and retaining walls may be closer to the boundary than expected. Their location does not automatically prevent a building certificate from being issued, but council may need accurate dimensions to assess the circumstances.

Easements are another important consideration. A drainage easement, sewer easement or right of carriageway can affect what may remain on the site and whether further approvals are needed. A survey can show the relationship between a structure and the easement, while the relevant authority, council or legal adviser determines the practical implications.

Boundary occupation can also differ from title boundaries. A fence may have been placed for convenience, around landscaping or in line with a previous owner’s assumptions. If a building has been positioned from that fence, the discrepancy can become significant. This is why a visual inspection or informal measurement is not enough for compliance-related decisions.

Avoiding delays and repeat work

The fastest survey is not necessarily the one that merely produces a drawing. It is the one scoped correctly for council’s requirements and prepared from proper title and field evidence. Before work begins, confirm whether council has specifically asked for an identification survey, whether it needs floor levels or contour information, and which structures must be shown.

Do not rely on a real estate floorplan, a previous owner’s sketch or an unverified boundary peg. These documents may be useful background, but they cannot replace a registered survey for an application involving legal boundaries. Similarly, do not arrange demolition, rectification work or new construction based solely on assumed setbacks.

Where a building certificate matter involves multiple consultants, nominate who will provide the final package to council and share the survey plan early. Your architect may need it for drawings, an engineer may need it to identify a retaining wall or structure, and a planner may need it to explain the site context. Coordinating these inputs early reduces conflicting dimensions and repeated requests for clarification.

Choosing the right surveyor

For a council building certificate matter, choose a registered land surveyor with experience in identification work and local approval processes. Registration matters because cadastral boundary work requires professional judgement, formal competency and responsibility for the plan produced.

Local knowledge also helps. Central Coast properties range from compact urban allotments to steep bushland sites, waterfront land and older subdivisions with varied survey history. A surveyor familiar with these conditions can identify likely constraints, plan the fieldwork appropriately and communicate clearly with your project team.

Central Coast Surveyors prepares identification surveys and related plans for property compliance matters, working alongside owners, builders and consultants to provide accurate information when it is needed. The aim is straightforward: establish the facts early, give council a clear plan to assess, and keep the next project decision moving.

Residential Subdivision Survey Guide for NSW

Residential Subdivision Survey Guide for NSW

A residential subdivision can look straightforward on paper: split one allotment into two, create a driveway and register the new titles. On the Central Coast, the reality is usually more detailed. This residential subdivision survey guide sets out where surveying fits into a NSW subdivision, what information is needed at each stage and how early advice can prevent approval, construction and registration delays.

The right survey is not simply a drawing required for an application. It is the base information that lets your architect, town planner, civil engineer, certifier and builder work from the same reliable position. If boundaries, levels, easements or existing services are misunderstood at the start, the cost is often felt later through redesign, additional approvals or site work that cannot proceed.

Start with subdivision feasibility, not a plan of lots

Before committing to a design or purchase, establish what is physically and legally possible on the land. Minimum lot size, zoning, access, bushfire constraints, flooding, drainage, heritage considerations and servicing all influence the outcome. Council planning controls and the particular characteristics of the site will determine whether a proposed layout is practical.

A registered surveyor can provide the accurate site information needed for that assessment. This commonly begins with a detail and contour survey, supported by title and cadastral information. It gives the project team a measured picture of the site rather than relying on aerial imagery, old sketches or assumed fence lines.

Confirm the title position and boundary evidence

A title search may identify registered easements, restrictions on use, covenants and rights of carriageway that affect where lots, buildings and access can sit. However, title information alone does not show whether occupation on the ground agrees with the legal boundary.

An identification survey or boundary investigation may be appropriate where boundaries are unclear, fencing is disputed, structures sit close to a boundary or an existing dwelling is intended to remain. A registered surveyor assesses the available survey evidence, marks or reinstates boundaries where required, and identifies encroachments or discrepancies that need attention before the subdivision proceeds.

This work is especially valuable on older Central Coast properties, waterfront land and sites with informal access arrangements. A fence, driveway or retaining wall may have been in place for years without representing the true title boundary.

Capture levels, improvements and site constraints accurately

The detail and contour survey records features relevant to design and approvals. Depending on the brief, this can include buildings, fences, driveways, kerbs, visible services, drainage structures, trees, retaining walls, spot levels and contours. It should also locate adjoining features where they may affect setbacks, stormwater, access or construction.

For a sloping site, quality level data is critical. A subdivision that meets minimum lot dimensions may still become expensive or impractical once cut and fill, driveway grades, stormwater paths, retaining walls and accessible access are considered. Early survey data helps the design team test these issues before a proposal is locked in.

Residential subdivision survey guide: the NSW process

The precise pathway depends on the development type and consent conditions. A simple Torrens title subdivision is different from a strata plan, community title scheme or subdivision involving new roads and significant civil works. Even so, most residential projects follow a similar sequence.

1. Establish a workable concept

Your planner and designer use the survey information to prepare a concept that responds to the applicable planning controls. At this stage, the team should test lot dimensions, building envelopes, vehicle access, waste collection, stormwater and utility servicing. The surveyor can advise on cadastral implications, existing easements and whether new easements may be needed for drainage, access or services.

Do not leave easements until the end. A proposed stormwater line or shared driveway that crosses another lot needs a legal mechanism to remain in place. Identifying this early keeps the layout, engineering design and title documentation aligned.

2. Obtain development consent and satisfy conditions

Many subdivisions require development consent from the relevant consent authority. Conditions may call for civil works, drainage design, road upgrades, utility connections, contributions, landscaping or specific survey plans. Read those conditions as a project checklist, not as paperwork to deal with at the finish line.

The surveyor works alongside the planner, civil engineer and certifier to provide plans and survey data in the required format. Clear coordination matters here. A lot layout adjusted during engineering must be checked against the approved subdivision design and title requirements before work is set out on site.

3. Set out approved works accurately

Where subdivision works are required, construction set-out transfers the approved design to the ground. This may include new lot boundaries, road alignments, kerbs, drainage pits, driveways, retaining walls and building locations.

Set-out is not a one-off exercise. Construction often requires staged marks and level checks as earthworks, drainage and pavements are completed. Prompt survey support helps contractors resolve questions before an error becomes buried under concrete, asphalt or fill.

4. Complete final surveys and compliance information

Once the physical works are complete, final survey information is used to demonstrate that the constructed outcome matches the approved design and relevant conditions. The exact requirements vary, but final levels, drainage structures, road works and lot dimensions may all need verification.

This is where an early, accurate survey record pays off. If the final location or level of a structure differs from the approval, the project team has time to assess the issue and seek a solution. Discovering it shortly before registration can delay the release of new titles and settlement.

5. Prepare the subdivision plan for registration

After approvals and required works are addressed, a registered surveyor prepares the appropriate plan of subdivision and supporting documentation for lodgement. For Torrens title land, this commonly involves a deposited plan. The plan defines the new lots and any easements or restrictions required for the development.

The plan must satisfy NSW surveying and land registration requirements, not merely show the intended layout. It is checked against survey evidence, title information, approved plans and any relevant dealings. Other parties may also need to provide certificates, consents or documents before NSW Land Registry Services can register the plan and issue the new titles.

Timing at this stage depends on the complexity of the project, the responsiveness of authorities and service providers, and whether the submitted documents are complete. It is worth allowing proper time for this process rather than promising purchasers a date based solely on construction completion.

Common issues that add cost or delay

The most avoidable subdivision problems usually arise from assumptions made early. An old plan may not reflect later easements. A proposed driveway may not fit within the available land once boundary evidence is assessed. A drainage solution may require an easement over a neighbouring parcel, while a steep site may need more retaining and stormwater work than the first concept allowed for.

Existing buildings also require careful consideration. If a house remains on one lot, check whether the new boundary creates non-compliant setbacks, fire separation issues, access constraints or service conflicts. The same applies to garages, pools, sheds, septic systems and retaining walls. A subdivision creates legal lots, but each resulting lot must also function safely and practically.

Another common issue is treating visible service locations as confirmed information. A detail survey can locate visible features, but service authority records, service locating and engineering investigation may be required before excavation or final design. The level of investigation should match the risk and scale of the work.

Choosing a surveyor for your subdivision

Subdivision surveying combines cadastral expertise, planning awareness, precise field work and land registration knowledge. For this reason, appoint a registered surveyor with experience in the type of subdivision you are proposing, whether it is a two-lot infill project, a rural subdivision, strata conversion or a larger community title development.

Ask how the surveyor will coordinate with your planner, architect, engineer and certifier, and what deliverables are required at each stage. Fast turnaround is useful, but accuracy and communication are just as important. A survey file that is clear, complete and supplied in the format the design team needs can save days of back-and-forth.

Central Coast Surveyors supports projects from initial detail and contour surveys through boundary work, construction set-out, final surveys and plan registration. That continuity reduces duplicated site visits and helps keep the cadastral, design and construction information consistent as the project changes.

Before you finalise a subdivision concept, arrange a site discussion with your consultant team and put the title, boundaries, levels, access and easement questions on the table. The earlier those fundamentals are resolved, the more confidently you can move from an idea on a plan to registered land ready for its next use.

Property Survey Approval Process Guide for NSW

Property Survey Approval Process Guide for NSW

A survey is rarely the document that receives development consent on its own. It is the evidence that lets your architect, planner, engineer, certifier, council and NSW Land Registry Services make the right decisions. This property survey approval process guide explains where surveying fits, what to organise first and how to avoid the errors that hold up Central Coast projects.

The first question is not, “Which survey do I need?” It is, “What decision needs to be made?” A new dwelling, secondary dwelling, extension, subdivision, building certificate, waterfront licence transfer or boundary dispute each calls for different information. Ordering the right survey early saves redesign, repeat site visits and avoidable approval delays.

Start with the project outcome, not a generic survey

Before a surveyor attends site, clarify the intended work, the property address and lot details, whether construction has already occurred, and the approval pathway you expect to use. Your surveyor can then advise what survey information is likely to be required and coordinate it with the wider consultant team.

For a new home, alteration or development application, a detail and contour survey is often the practical starting point. It records the existing ground levels, buildings, visible services, trees, fences, roads, kerbs and other site features relevant to design. Your architect can use this base information to position the building, manage drainage and assess the site against planning controls.

If the question is whether an existing building sits within its legal parcel, an identification survey may be the appropriate document. This is commonly requested for council building certificate matters, property transactions and waterfront licence transfers. It compares improvements and occupation with the title boundaries and identifies issues that need to be addressed.

A cadastral boundary mark-out has a narrower purpose. It identifies the legal boundary position on the ground, which is useful before fencing, building near a boundary, resolving uncertainty or planning an easement. It should not be substituted for a topographical survey where design levels and site features are required.

The property survey approval process in NSW

Every site has its own constraints, but the survey approval process generally follows a clear sequence. Good coordination at each stage is what keeps the next consultant moving.

1. Confirm title, controls and the scope of work

A registered surveyor reviews the available title information, deposited plans and relevant survey records before fieldwork. For development work, the team also needs to understand the proposed design and likely approval requirements. This early review helps identify whether the site involves an easement, restricted covenant, irregular boundary, access issue or existing encroachment that could affect the proposal.

Do not assume a fence represents the boundary. Fences can be offset, replaced over time or built for convenience rather than legal accuracy. Similarly, online mapping and old marketing plans can help with orientation, but they are not a substitute for a cadastral survey.

2. Complete field survey work accurately

The field component varies with the scope. A detail and contour survey captures physical site information and levels. A boundary survey involves cadastral evidence, measurements and boundary reinstatement. For construction, the surveyor translates approved design coordinates and levels into accurate marks on site.

Access matters. Make sure gates are unlocked where possible, dogs are secured and any relevant site hazards are disclosed. On steep, heavily vegetated or waterfront land, fieldwork can take longer because visibility and safe access affect what can be observed. Fast turnaround is valuable, but it should never mean incomplete site data.

3. Issue survey plans in a format the project team can use

A survey plan should be clear enough for the next decision-maker to rely on it. Depending on the project, the deliverable may include a PDF plan, CAD file, digital terrain model, boundary information or a formal identification survey report.

The architect or building designer uses the survey to develop a concept that responds to the land. Town planners may use it to assess setbacks, height planes, site coverage and environmental controls. Civil and structural engineers use accurate levels and features to design drainage, retaining, access and structural solutions.

This is where a common false economy appears. Designing from rough measurements, aerial imagery or an old plan can look cheaper at first. If the finished survey later reveals a fall across the block, an overlooked easement or a building envelope problem, the redesign cost can be far higher than commissioning suitable information at the outset.

4. Resolve issues before lodging an application

A survey can reveal matters that need a response before plans are lodged. These may include a building close to a boundary, inconsistent fence lines, a drainage easement, insufficient information about existing levels or an access constraint.

Not every issue prevents approval. Some are managed through revised design, further investigation, an easement, owner consent, a planning variation or advice from the relevant authority. The key is to identify the issue while the project remains flexible, rather than after drawings, consultant reports and application fees have been committed.

For work requiring development consent, the consent authority will assess the complete application against applicable planning controls. For complying development or building work, a private certifier or council may require survey information to verify siting and compliance. Requirements differ between projects, so your surveyor should work alongside the designer, planner and certifier rather than attempting to replace their roles.

5. Use survey control during construction

Approval is not the end of the surveying role. Once work starts, construction set-out establishes the positions and levels shown on the approved drawings. This can include building corners, excavation lines, piers, retaining walls, roads, drainage and finished floor levels.

Set-out should occur before irreversible work begins. A slab or wall built in the wrong position can create expensive compliance and boundary problems, especially on tighter residential sites. Builders also benefit from clear, timely marks that reduce uncertainty for trades and keep the programme on track.

As construction progresses, floor level reports or as-built surveys may be needed to confirm completed work. These reports can assist with certification, contractual checks and evidence that required levels have been achieved.

6. Register subdivision, strata or easement plans correctly

Subdivision and title work requires a more formal process. Whether the project involves Torrens title subdivision, strata subdivision, community title, a lease plan or an easement, the plan must meet NSW Land Registry Services requirements and be prepared by a registered surveyor where required.

The surveyor coordinates boundary definition, plan preparation and the technical steps needed for registration. Other parties may include council, a certifier, solicitor, conveyancer, lender, owners corporation, utility authority and adjoining owners. Timing depends on the type of title, conditions of consent, service works and the speed at which each party provides approvals or signatures.

This is not a stage to leave until construction is nearly complete. Conditions of consent can require plans, works, certificates or easement documentation before final registration. Early surveying advice gives the project team time to sequence these requirements properly.

What commonly delays property approvals

Most survey-related delays are preventable. They usually arise because survey information is ordered late, the scope does not match the project, design changes are not sent to the surveyor, or a boundary assumption is treated as fact.

Communication across consultants is equally important. If an architect changes the building footprint, the civil engineer revises levels or a planner identifies a setback issue, the surveyor needs the current information. One coordinated survey partner can reduce duplicated effort by supplying consistent site control and responding quickly as the design develops.

Property owners should also retain copies of titles, old plans, approvals and relevant correspondence. These documents may not settle every boundary question, but they can help the project team understand the history of the site and identify issues sooner.

Choosing the right surveyor for an approval project

For land boundary, subdivision and title matters, use a registered surveyor with NSW cadastral expertise. Registration matters because legal boundaries and plans for registration involve professional responsibilities that go beyond measuring visible features on site.

For development and construction work, look for a surveyor who can support the full project cycle: initial detail and contour work, boundary advice, set-out, final surveys and title registration where needed. Local knowledge also helps. Central Coast sites can involve steep grades, bushland, coastal exposure, older subdivisions, waterfront land and constrained access, all of which affect survey planning and design decisions.

Central Coast Surveyors works with property owners and project teams from early site information through to construction and registration. The practical benefit is straightforward: fewer handovers, clearer information and a surveyor who understands why the next deadline matters.

The best time to involve a surveyor is before the first plans are drawn in detail. A clear survey brief, accurate site data and regular communication give every later decision a firmer foundation – and give your project a better chance of progressing without costly surprises.

Lease Area Surveys for NSW Property Projects

Lease Area Surveys for NSW Property Projects

A lease can be commercially straightforward while the area it covers is anything but. A driveway, loading bay, waterfront strip, access corridor or part of a larger parcel may be used by one party without being separately titled. Lease area surveys establish exactly where that leased land begins and ends, so the lease, plan and physical occupation all refer to the same area.

For property owners, developers and tenants on the Central Coast, that clarity matters before a lease is signed, varied, renewed or transferred. It also matters when a lease is connected to a development application, a building approval, a Crown tenure matter or registration through NSW Land Registry Services.

What is a lease area survey?

A lease area survey is a cadastral survey that defines the land proposed to be leased within a parent parcel, or confirms the extent of an existing lease area. The result is generally a survey plan prepared for the particular legal and administrative purpose of the transaction.

Unlike a general site measure, this work is concerned with legal definition. A registered surveyor investigates title information, existing deposited plans, survey marks, adjoining boundaries and the intended occupation area. They then measure and calculate the lease boundaries so they can be shown accurately on a suitable plan.

The area may be a whole lot, but it is often only part of a lot. Common examples include a portion of industrial land for a tenant’s yard, a telecommunications site, a café area within a larger property, a car park, a marina-related area, or a section of land used for storage or access.

The right plan and process depend on who owns the land, the type of tenure, the lease terms and the requirements of the relevant authority. This is why an early discussion with a registered surveyor can prevent the wrong survey product being commissioned.

Why lease area surveys matter before documents are finalised

Lease descriptions can look clear on paper while leaving room for disagreement on site. Phrases such as “the rear portion”, “approximately 500 square metres” or “the area beside the shed” are rarely enough where legal rights, construction works or public land are involved.

A properly defined lease area gives the parties a fixed reference for what is included. It can identify whether fencing, parking, services, accessways, structures and improvements sit within the proposed area or outside it. It can also expose practical issues early, such as a tenant needing access over land that is not included in the lease.

That early certainty helps avoid several costly problems:

  • a lease area unintentionally crossing a title boundary or encroaching on an adjoining owner’s land;
  • an access route, fire egress path or service connection falling outside the leased area;
  • a proposed building, fit-out or storage use conflicting with the area shown in approval documents;
  • delays when a solicitor, managing authority or NSW Land Registry Services requires a more precise plan; and
  • disputes at renewal or expiry about which land must be handed back.

For a development project, the survey can also give architects, planners and engineers a dependable base for their drawings. Design decisions made from an assumed lease boundary may need costly revision once the legal area is properly established.

When you may need a lease area survey

A lease area survey is commonly required where only part of a parcel is being leased and the area must be formally identified. It may be requested by a landowner, solicitor, property manager, government authority, lender or the organisation administering the tenure.

It is particularly relevant when a new lease is being created over part of a lot, an existing leased area is changing, or a tenant is taking over rights to a defined area. Waterfront and foreshore-related tenure can require careful attention, as the leased or licensed area may sit beside private title, public land or water boundaries that have their own administrative requirements.

Not every commercial lease needs a new cadastral survey. If the lease is over an entire existing lot with a clear legal description, title information may be sufficient. Similarly, a simple internal tenancy within a building can sometimes be described through a lease plan prepared from architectural information rather than a field survey. The deciding factor is the legal purpose and whether the boundary must be tied to land title, physical features or an authority’s prescribed plan standard.

If the area includes external land, exclusive-use space, vehicle access, a yard, a wharf, or land near an irregular boundary, it is wise to check the requirement before documents are prepared.

The lease area survey process in NSW

The process starts with a clear brief. The surveyor needs to know the property address, title details, proposed use, approximate area, whether the lease is new or existing, and who will rely on the plan. A marked-up aerial image or site sketch can help explain the commercial intention, but it is not a substitute for survey definition.

Title and records investigation

The surveyor reviews the available title documents, deposited plans, easements, restrictions and relevant survey records. This investigation establishes the parent parcel and identifies matters that may affect the proposed lease area, including rights of way, drainage easements or other interests.

For Crown, council or waterfront land, there may be additional tenure records and plan requirements. These should be confirmed early because they can affect the plan format, approvals and programme.

Field survey and boundary control

A field survey is then carried out where required. Existing survey marks are located and assessed, boundaries are re-established where necessary, and the proposed lease lines are measured in relation to the parent parcel and relevant site features.

Modern Trimble equipment supports efficient, precise fieldwork, but the equipment is only part of the service. The legal reliability of the outcome depends on the registered surveyor’s interpretation of evidence, calculations and compliance with NSW surveying standards.

Plan preparation and coordination

Once the survey data is checked, the surveyor prepares the plan needed for the transaction. The plan may show dimensions, area, boundaries, access, easements, buildings and other features relevant to the lease purpose. It must be consistent with the legal description and with the requirements of the party accepting it.

This is the stage where coordination matters. Solicitors need a legally workable description. Architects and planners may need the surveyed area reflected in their drawings. Property managers may need clear identification of maintenance or exclusive-use boundaries. Resolving these points before lodgement is faster than correcting them after documents have circulated.

Approval, execution and registration

Depending on the lease and land tenure, the completed plan may support an application, be attached to lease documentation, or form part of a registration process. The exact pathway varies. A private commercial arrangement, a Crown lease and a waterfront licence transfer do not necessarily follow the same process.

Your surveyor should explain what they are providing, who needs to review it, and any information still required from your legal representative or managing authority. Surveying advice supports the plan itself, while legal advisers remain responsible for the lease terms and legal transaction.

Information that helps prevent delays

The fastest projects are usually those where the survey brief is settled before fieldwork begins. Provide the current title reference or a copy of the title, the draft lease if available, contact details for the solicitor or property manager, and any plans already used for approvals or tenancy negotiations.

It is also useful to identify the intended use. A lease for outdoor dining has different practical considerations from a lease for heavy vehicle parking, storage, a construction compound or a waterfront structure. If access, parking, shared services or security fencing are part of the arrangement, flag them early.

Do not assume existing fences, painted lines or buildings define the lease boundary. They may be useful reference features, but they do not establish legal rights unless the survey and lease documentation adopt them appropriately.

Choosing the right surveying support

Lease area work sits between property law, title definition and on-site reality. It should be handled by a registered surveyor with experience in cadastral plans and NSW registration requirements, not simply by a provider offering a measured sketch.

Ask whether the proposed scope includes title investigation, field survey where needed, plan preparation and coordination with the people preparing the lease. Confirm the expected turnaround, any authority requirements, and whether extra work could be needed if records, boundaries or tenure arrangements are more complex than first understood.

Central Coast Surveyors can coordinate this work with property owners, solicitors, planners and project teams, using local knowledge and registered surveying expertise to keep the process moving.

Start with the area, not the assumption

Before committing to lease terms or investing in a fit-out, make sure the proposed area can be clearly identified, accessed and used for its intended purpose. A precise survey brief at the start gives every party a common reference point and leaves far less room for expensive uncertainty later.

Lone Pine Avenue Shops Umina Beach – Lease Area Survey

Central Coast Surveyors has completed the Lease Area Survey for all commercial shops along Lone Pine Avenue, Umina Beach.

As a local Registered Surveyor on the Central Coast, we utilise modern surveying technology and advanced equipment to deliver accurate, reliable and efficient survey solutions for commercial property owners, developers and businesses.

Our experience, combined with modern surveying technology, ensures precise identification and documentation of lease areas to support commercial leasing, property management and future planning requirements.

Site Survey for Duplex Design Before You Build

Site Survey for Duplex Design Before You Build

A duplex can look straightforward on a concept plan: two dwellings, two entries, two garages and a shared wall. On a real Central Coast block, however, the design must respond to slope, drainage paths, boundary position, existing services, trees, easements and planning controls. A site survey for duplex design gives your architect, planner and engineers the measured information to make those decisions before time is spent developing the wrong scheme.

For owners and developers, this is not simply an early administrative step. It is the base information that affects whether a duplex is practical, how much earthworks may be needed, where vehicles can enter safely and whether the proposal can be designed around the site rather than forced onto it.

Why duplex projects need accurate site information

Duplex development places more pressure on a site than a single dwelling. Two homes need workable access, private open space, parking, drainage, waste collection arrangements and compliant setbacks. On tighter or sloping land, a small error in levels or an assumed boundary position can have expensive consequences once the design reaches planning, construction certification or set-out.

A detail and contour survey records the physical features of the property and its immediate surrounds. It gives the design team a reliable plan of existing ground levels, structures, visible services, fences, driveways, trees, kerbs, footpaths and other relevant features. Rather than designing from aerial imagery, old plans or rough site measurements, consultants can work from current survey data tied to recognised coordinates and levels.

This is especially valuable across the Central Coast, where sites often have pronounced fall, bushland interfaces, drainage constraints, coastal conditions or older development patterns. A level block and a steeply falling block may support the same number of dwellings, but they will require very different design, stormwater and construction approaches.

What a site survey for duplex design should show

The exact scope depends on the land, the proposed development and the requirements of the consultants involved. For most duplex feasibility, design and approval work, the survey should provide a clear picture of both the parcel and the conditions that influence development.

Boundaries and title information

A surveyor reviews the available title information and occupation around the site, including fences, walls and other apparent boundary evidence. This is important because a fence is not automatically on the legal boundary. Where boundary certainty is needed for design setbacks, demolition, new retaining walls, construction close to a boundary or future subdivision, a registered surveyor can advise whether a cadastral survey or boundary mark-out is required.

Existing easements, restrictions and covenants also need attention. A drainage easement may limit where a building, pool, retaining wall or other structure can be placed. A restriction on the title may affect the type or scale of development. These matters should be identified early so the design team is not left redesigning a near-complete proposal.

Levels, contours and site fall

Duplex design depends heavily on levels. The survey captures spot levels across the site and produces contours that show how the land rises and falls. It can also locate floor levels of existing buildings, kerb levels, driveway levels, drainage pits and other features that help engineers assess site drainage and vehicle access.

This data informs practical questions: Can each dwelling achieve sensible finished floor levels? Will the driveway be too steep? Is a split-level design preferable? How much cut, fill or retaining is likely? Can stormwater drain to a lawful point of discharge? The answer is rarely found by looking at the block from the street.

There is a trade-off here. A design that follows the natural ground level can reduce excavation and retaining, but it may complicate layouts or construction. A flatter building platform may improve usability, but can increase earthworks, drainage requirements and cost. Accurate contours allow those choices to be made with evidence.

Existing buildings, improvements and vegetation

The survey records buildings, sheds, decks, pools, driveways, retaining walls, fences and significant visible features. For a site with an existing dwelling, this information helps determine whether demolition, staged construction or retention of part of the building is feasible.

Appropriate trees and vegetation are also located, particularly where they may affect building footprints, driveways, sewer connections or council assessment. A survey does not replace an arborist report where one is required, but it gives the arborist and designer a precise base plan to assess tree locations and proposed impacts.

Services and surrounding infrastructure

Visible service features such as sewer inspection openings, water meters, power poles, pits and overhead wires should be picked up where relevant. This helps the project team identify likely connection points and avoid obvious clashes. Formal service location and authority information may still be needed, particularly before excavation or where underground assets are uncertain.

The survey should also extend sufficiently beyond the property to capture features affecting access and drainage. Road levels, kerbs, gutters, footpaths, vehicle crossings, neighbouring buildings and adjoining ground levels can all influence a duplex layout. For example, a proposed garage may fit within the property but fail to achieve a practical driveway grade to the street.

How the survey supports the approval pathway

A quality survey gives each consultant a common, dependable starting point. The architect uses it to test building envelopes, setbacks, private open space and floor-level options. The town planner uses it to assess the proposal against applicable controls. Civil and hydraulic engineers use levels and site features to develop drainage and access solutions, while structural engineers may use it to understand retaining and site interface issues.

It also helps establish a more realistic feasibility position. Before committing to a purchase, design fee or development application, an owner can see where the likely cost drivers sit. These may include extensive retaining, difficult stormwater management, constrained access, sewer limitations or a boundary issue needing resolution.

A survey cannot guarantee development approval. Council assessment will depend on the applicable planning framework, site-specific constraints and the final proposal. It does, however, reduce avoidable uncertainty by ensuring the proposal is based on measured conditions rather than assumptions.

When to arrange the survey

The best time is before concept design is advanced. For a potential purchase, early survey information can be a valuable part of due diligence, especially on irregular, sloping, waterfront or apparently constrained land. For an owned property, it should be arranged before the architect begins detailed layouts.

Waiting until a development application is nearly ready often creates unnecessary rework. A preliminary drawing might show two compliant-looking dwellings, only for the survey to reveal a deeper fall across the block, a boundary discrepancy, an easement or an existing drainage feature that changes the layout.

If the project involves demolition, a separate identification survey may be appropriate where the relationship between existing structures and boundaries needs to be established. If the intention is to create separate titles after construction, early discussion about strata, community or Torrens title subdivision can also help the project team plan the right pathways from the outset.

Choosing the right survey scope

Not every duplex site needs the same level of investigation. A relatively clear, rectangular urban block may need a standard detail and contour survey, with additional cadastral work if boundary marks are unclear. A steep acreage site, waterfront property or block with significant vegetation and multiple structures will usually need a broader scope.

The most useful approach is to provide the surveyor with the property address, proposed development, any available plans and the names of the consultants involved. This allows the fieldwork and deliverables to be tailored to the design task. It also means the survey plan can be issued in a format that architects and engineers can readily use.

Central Coast Surveyors works with property owners and project teams from early site investigation through construction set-out and final subdivision or title registration. That continuity can reduce handover gaps as a duplex moves from feasibility to approved plans and built works.

A duplex succeeds when the design works on the actual land, not just on paper. Arrange the survey early, give your consultants accurate information and let the site shape the smartest path forward.
