A new driveway, pool excavation or retaining wall can become an expensive problem the moment a machine strikes an unseen pipe or cable. So, can surveyors locate utilities? A land surveyor can identify, measure and document many visible service features and known utility information, but they are not usually the specialist responsible for physically proving the precise position and depth of underground services.

That distinction matters before any excavation starts. A reliable project plan combines survey information, utility records, on-site investigation and, where required, a specialist utility locator. Each has a different purpose, and none should be treated as a substitute for safe digging procedures.

Can surveyors locate utilities accurately?

Surveyors can locate and map visible evidence of utilities across a site. This may include sewer inspection openings, electrical pillars, telecommunications pits, water meters, hydrants, overhead power poles, stormwater grates and service connection points. These features can be picked up during a detail and contour survey and shown in relation to boundaries, buildings, levels and proposed works.

This information is highly useful for architects, engineers and builders. It helps them position a new dwelling, driveway, drainage system, pool or addition with a clearer understanding of the site constraints. It can also flag practical issues early, such as a sewer line near a proposed extension or a power pole affecting access.

However, a visible pit or meter does not prove the route, depth, material or condition of the service running underground. Services may deviate from a direct line, have been altered over time, or be installed without current records reflecting the final position. On older Central Coast properties in particular, assumptions based on surface features can create unnecessary risk.

A registered surveyor may incorporate information supplied by a utility authority or specialist locator into a survey drawing where appropriate. The source and limitations of that information should be clearly understood by everyone relying on the plan.

What a land survey can tell you

A properly scoped detail and contour survey gives a project team an accurate spatial base for design. It records the physical features that can be observed and measured on the day, along with contours or spot levels that show how the land falls.

For utility planning, a survey can show where known above-ground infrastructure sits relative to the title boundary and existing improvements. That may include the location of a sewer manhole, an overhead electricity line crossing a site, a drainage inlet at the kerb, or a telecommunications pit near a proposed crossover.

It can also identify easements shown on the title. An easement may provide rights for a sewer, drainage line, electricity infrastructure or access. It is a legal interest in land, not proof that a particular service is located exactly along its centreline. Nevertheless, it is an essential design constraint. Building over or obstructing an easement can trigger approval issues, access requirements and costly redesign.

For a development, subdivision or construction project, survey data allows the architect and engineer to coordinate proposed works with real site conditions rather than working from an aerial image or an old plan. That early coordination is often where delays and avoidable variations are prevented.

When you need a specialist utility locator

If excavation is proposed near suspected underground assets, engage a suitably qualified utility locating provider before work begins. They use methods such as electromagnetic detection, signal tracing, ground penetrating radar and, where necessary, non-destructive digging to investigate service locations.

The right method depends on the asset and site conditions. Metallic services may respond well to electromagnetic tracing, while non-metallic pipes can be more difficult to detect. Ground penetrating radar can assist in some circumstances, but soil type, moisture, reinforcement, rock and site congestion can limit results. A locator should explain what has been detected, what remains uncertain and whether potholing or vacuum excavation is needed to expose and verify a service safely.

Specialist locating is particularly worthwhile where work involves deep excavation, piers, retaining walls, drainage trenches, bored holes, demolition, road crossings or machinery access. It is also sensible where the consequence of a strike would be serious, such as near gas, high-voltage electrical infrastructure, major water mains or telecommunications networks serving neighbouring properties.

Before excavation, obtain current utility plans through the relevant before-you-dig enquiry process. These plans are an important first step, but they are generally indicative only. They should be read alongside site observations and specialist locating, not relied upon as the sole authority for digging locations.

Why utility records and survey plans can differ

Clients are often surprised when a service plan does not match what is found on site. There are several reasonable explanations. Utility plans may show approximate alignments, older services can be abandoned in place, and private lines installed after subdivision may not appear on public asset records.

A service can also cross a property in a location that is not obvious from the street. Stormwater from an upstream property, for example, may pass through a private drainage arrangement. Sewer connections can include bends and junctions that cannot be inferred from the position of an inspection opening. A building renovation may have changed private plumbing without updating every available record.

This is why surveyors, designers, locators and builders need to share the same current information. A survey drawing is not just a plan for council or design purposes. Used properly, it becomes a coordination document that lets each consultant identify conflicts before they become site problems.

A practical process before you dig

For a small residential project, the process may be straightforward: obtain utility information, arrange a detail survey if one is needed for design, have critical services located, then confirm the work area with the builder before excavation. Larger developments require more formal coordination between the surveyor, civil engineer, structural engineer, architect, utility locator and construction team.

The key is to arrange investigations early enough for the findings to influence the design. Discovering a sewer conflict after plans are approved can mean relocating footings, changing drainage falls, revising a driveway, seeking authority consent or redesigning part of a building. Those outcomes cost more once consultants and trades are already committed.

Before engaging a surveyor or locator, provide as much project detail as possible. Let them know whether you are planning a new home, extension, pool, granny flat, retaining wall, subdivision, drainage works or commercial construction. Identify the proposed excavation areas and expected depths if known. This allows the right scope of work to be quoted rather than paying for information that does not answer the construction question.

Surveying support through design and construction

A registered land surveyor has a distinct role in keeping a project accurately positioned. They can establish boundaries, prepare a detail and contour survey for design, identify title interests such as easements, set out approved building locations and confirm completed works for plans or certification requirements.

During construction, set-out work ensures the builder has reliable marks for building corners, grids, levels and other design points. It does not replace service locating, but it helps prevent another common problem: a correctly located service being affected because the structure, excavation or drainage run was positioned incorrectly on site.

For waterfront, sloping, constrained or heavily developed sites, coordination is especially valuable. The more existing infrastructure a project needs to work around, the less room there is for assumptions. Central Coast Surveyors can help clients understand which survey information is needed at each stage and coordinate survey data with the wider project team.

Frequently asked questions

Can a surveyor tell me where my sewer line runs?

A surveyor can locate visible sewer features and show registered easements or available information on a survey plan. To confirm the actual underground route, depth and condition of a sewer line, arrange utility locating, CCTV investigation or advice from the relevant water authority or licensed plumber, depending on the situation.

Does an easement show the exact location of a utility?

Not always. An easement defines a legal area where certain rights apply. The service may be within that area, but its exact alignment should not be assumed without further investigation. Design should also allow for access and authority requirements affecting the easement.

Do I need services located for a fence or landscaping?

It depends on the work. Hand-dug shallow planting may carry less risk than post holes, retaining wall footings or excavation with machinery. If digging could reach underground assets, obtain current utility information and assess whether specialist locating is appropriate before work starts.

The safest time to resolve a utility question is while the design can still move on paper. Accurate survey information, realistic service investigations and clear communication between consultants give your project a far better chance of starting without an avoidable surprise below ground.

A subdivision decision can shape a development long after the lots are sold. When considering Torrens versus community title subdivision, the key question is not simply how many lots can be created. It is whether the proposed layout needs shared land, shared infrastructure and an ongoing framework to manage them.

For Central Coast projects, that distinction often becomes clear early in design. A straightforward infill site with independent street access may suit Torrens title. A site with a private road, shared driveway, communal open space, drainage basin or gated entry may be better suited to community title. The right answer depends on the land, the planning pathway, servicing requirements, proposed ownership structure and the obligations future owners will take on.

What is a Torrens title subdivision?

A Torrens title subdivision creates separate, individually owned parcels of land. Each lot has its own title and is generally responsible for its own buildings, services, access and maintenance. It is the familiar form of ownership for a standard house-and-land subdivision.

In a typical Torrens subdivision, each new lot fronts a public road and can function independently. Owners can build, sell, finance and maintain their property without belonging to an owners corporation or community association.

That does not mean there can never be shared arrangements. Easements may still be needed for drainage, sewer, access or services. A right of carriageway, for example, can give one lot legal access across another. However, the ownership model itself does not create a shared-property management body.

For buyers, Torrens title is often easy to understand and can be attractive because there are usually no association levies or collective decision-making processes. For developers, it can offer a clean end product where the site and servicing arrangement allow it.

What is community title?

Community title is designed for land developments where individual lots need to share property or infrastructure. It creates privately owned community lots as well as community property, which is owned collectively by the lot owners through a community association.

Community property may include an internal access road, landscaped areas, visitor parking, stormwater infrastructure, recreation facilities, entry gates or other assets that serve more than one lot. The association is responsible for managing that property, raising levies and making decisions in accordance with the relevant legislation and by-laws.

A community title scheme can also include a more detailed structure. Larger developments may have precincts, with a precinct association managing assets used by a particular part of the scheme, while the community association manages broader shared assets. This can be useful in staged residential developments or mixed-use projects where not every owner benefits from every facility.

Community title is not the same as strata title. Strata title is commonly used for apartments, townhouses and other buildings with lots defined by building boundaries. Community title is generally used for land-based developments, although community and strata schemes can be combined in more complex projects.

Torrens versus community title subdivision: the practical differences

The clearest difference is what happens to common land. Under a Torrens arrangement, the goal is usually for every lot to stand on its own, with public infrastructure or clearly defined easements dealing with any necessary connections. Under community title, common property is intentionally retained and managed collectively.

That difference affects design from the outset. If a proposed rear lot depends on a shared private driveway, the project team needs to consider whether an easement arrangement is practical or whether a community title structure will better manage the driveway, drainage and ongoing maintenance. There is no universal rule. A small two-lot arrangement may be efficiently managed through carefully drafted easements, while a larger development with several lots and substantial shared assets may need the certainty of community title.

Ongoing cost is another major consideration. Torrens title owners generally pay only for their own property costs, plus usual council rates and utility charges. Community title owners also contribute to association levies for insurance, maintenance, administration and replacement of shared assets. These levies need to be realistic. A private road, pump system or landscaped entry may look modest at completion but still needs maintenance for the life of the development.

Control also differs. A Torrens owner has broad control over their own lot, subject to planning controls, covenants and easements. In a community scheme, owners retain their individual property rights but are also bound by the scheme’s by-laws and collective decisions about community property. This can help protect presentation and maintenance standards, but it also introduces shared governance.

When Torrens title may be the better fit

Torrens title is commonly suitable where each proposed lot can have direct, independent access to a public road and separate servicing can be provided without relying on common property. It is often preferred for conventional residential subdivisions because the finished lots are simple to own and transact.

It may also be the more appropriate option where shared infrastructure can be avoided through a revised layout. For example, moving a boundary, providing a separate driveway crossover or adjusting service locations can sometimes remove the need for a management structure. This should be tested during feasibility, rather than after the design has progressed too far.

However, forcing a Torrens solution onto a site with significant shared assets can create future disputes. Easements are valuable legal tools, but they must be workable in day-to-day use. The people who buy the lots will need clear rights, clear responsibilities and a practical way to fund maintenance.

When community title may be the better fit

Community title is often well suited to sites where common property is unavoidable or adds genuine value. This may include developments accessed from a private internal road, sites with communal landscaping or recreation areas, or projects where a shared stormwater system needs consistent management.

On the Central Coast, sloping land, constrained road frontage, bushfire considerations, drainage requirements and environmental features can all influence the final layout. A community title structure may allow a development to retain and manage common areas more effectively than trying to divide every part of the land into private lots.

It can also give developers a mechanism to maintain agreed standards in an estate. By-laws may address matters such as upkeep of shared areas, parking, rubbish storage, pets or architectural controls, subject to proper legal and planning advice. This can support the intended character of a development, although buyers must understand the obligations before purchase.

The surveyor’s role starts before plans are lodged

The subdivision pathway is easier when the site is properly understood at the beginning. A registered surveyor can provide the accurate base information needed for architects, planners, civil engineers and designers to make sound decisions about boundaries, levels, existing services, access and constraints.

For either title type, the process commonly involves an initial detail and contour survey, review of title information and planning controls, preparation of subdivision plans, coordination with the project team and completion of survey requirements for registration. Depending on the proposal, there may also be easements, restrictions on use, positive covenants or association-related documentation to coordinate with the project solicitor or conveyancer.

In NSW, subdivision approval and title registration are separate but connected stages. Council or the relevant consent authority assesses the development proposal. Conditions of consent can require works such as road upgrades, drainage, service connections, landscaping or dedication of land. Once those requirements are satisfied, the registered surveyor prepares the appropriate plans for lodgement with NSW Land Registry Services.

For community title projects, the plan preparation and legal documentation are more involved because the scheme needs to define community lots, community property and, where relevant, precinct arrangements. For Torrens title, the focus is on accurately defining the new parcels, roads, easements and any other interests needed for the subdivision to operate as intended.

Questions to resolve before choosing a title structure

Before committing to a concept plan, establish who will own and maintain each driveway, drainage asset, retaining structure, landscaped area and service connection. Confirm whether every lot has suitable legal access, and whether the proposed arrangement is acceptable to council, service authorities and future lenders.

It is equally important to consider the end buyer. A low-maintenance Torrens lot may appeal to buyers who want independence. A community title lot may appeal where the shared facilities, maintained presentation or private environment add value. Neither is automatically better. The right structure is the one that matches the site, approvals and long-term operation of the development.

Early coordination prevents expensive redesign. A registered surveyor can work with your planner, engineer and legal advisers to test the practical implications of the proposed subdivision before the project is locked in. That is particularly valuable where access is constrained, the land is steep or the development relies on shared infrastructure.

The most useful next step is to have the proposed layout reviewed against the existing title, site conditions and approval requirements. A clear structure at feasibility stage gives the design team a better chance of delivering lots that are practical to build, straightforward to sell and manageable for the owners who will live with them.

A road can be built to the wrong level with excellent machinery, experienced operators and a sound design if the control behind it is wrong. Survey control for civil works is the reference framework that tells every person on site where work belongs horizontally and vertically. Get it right early and set-out, earthworks, drainage and final verification can proceed with confidence. Get it wrong and errors can carry through the project before anyone notices.

For civil contractors, developers, engineers and project managers, control is not a background task to be rushed through before construction starts. It is the practical basis for building to approved drawings, managing quantities and demonstrating that completed works meet the required tolerances.

What survey control means on a civil site

Survey control is a network of accurately established reference points with known coordinates and levels. Surveyors use these marks to position design elements on the ground and to check completed construction. Depending on the project, the network may include permanent survey marks, temporary control marks, benchmarks, offset pegs and stable reference points outside the construction area.

Horizontal control establishes position. It governs where a road alignment, kerb, pit, retaining wall, boundary interface or services corridor sits across the site. Vertical control establishes level. It is used for excavation depths, pavement layers, drainage grades, finished floor levels, kerb profiles and earthworks batters.

The design data must also be understood correctly. A drawing may refer to a project-specific grid, Map Grid of Australia coordinates, Australian Height Datum levels, or an assumed local datum. These are not interchangeable. A small misunderstanding between coordinate systems or level datums can create a site-wide error, particularly where new works must connect to existing roads, drainage or services.

Why survey control for civil works prevents expensive rework

Civil work is cumulative. If the first pavement layer is placed too high, the next layers, kerb and driveway tie-ins are all affected. If a stormwater line begins at an incorrect level, achieving the required grade at the downstream connection may become impossible without redesign or additional excavation.

Control provides a common reference for the surveyor, site supervisor, machine operator, engineer and subcontractors. It reduces reliance on informal marks, assumptions and measurements taken from a feature that may itself be inaccurate. It also allows work to be checked at meaningful hold points rather than waiting until practical completion.

The cost of establishing reliable control is modest compared with moving pavement, re-laying drainage, modifying concrete work or resolving a dispute about whether construction follows the approved design. It also protects program certainty. A quick check before a major pour or bulk excavation is far easier to arrange than a correction once crews and plant have moved on.

Control is different from construction set-out

The terms are often used together, but they are not the same service. Control creates the dependable reference framework. Construction set-out uses that framework to mark the location and level of specific works, such as road centreline points, kerb returns, pit positions, building grids or batter toes.

A project can have accurate set-out calculations and still suffer errors if the control marks have been disturbed, incorrectly adopted or not adequately verified. Conversely, good control alone does not replace detailed set-out. Both are required, and the right level of checking depends on the project’s risk, complexity and tolerances.

How a reliable control network is established

A surveyor starts by reviewing the available information: approved civil drawings, design surfaces, coordinate schedules, existing survey marks, title boundaries, services information and the proposed construction sequence. The aim is to understand what the site must connect to and which reference system the design uses.

Existing marks may be adopted where they are suitable, current and capable of being verified. On some sites, particularly those with extensive clearing or earthworks, new control must be established in locations unlikely to be disturbed. Marks should be accessible enough for efficient site use but protected from plant movements, stockpiles and changing access arrangements.

Modern Trimble GNSS equipment, robotic total stations and digital levels can establish and check control efficiently. However, technology does not remove the need for professional judgement. Satellite observations may be limited by tree cover, steep terrain, buildings or poor sky visibility. A total station traverse may be more appropriate for tightly constrained sites, while precise levelling can be necessary where drainage grades or floor levels are critical.

Redundancy matters. A single benchmark or lone control point provides little protection if it is damaged or wrong. Good practice is to establish sufficient independent checks so a discrepancy can be identified before it affects construction. The appropriate method depends on the scope, contract requirements and consequences of error.

Managing control through changing site conditions

A civil site does not stand still. Bulk earthworks remove surfaces, access tracks change, contractors install services, and temporary marks disappear under fill or pavement. Survey control therefore needs active management, not a one-off field visit.

Before work starts, the contractor should know which control marks are protected, who may use them and what must happen if a mark is damaged. Marks should not be moved simply to make room for equipment. If relocation is necessary, it should be completed and verified by the survey team before the original reference is removed.

Regular checks become particularly valuable after major earthworks, heavy rain, excavation near marks or any event that could affect stability. On waterfront, steep or heavily vegetated Central Coast sites, access and ground conditions can add another layer of complexity. A stable mark on a plan may not remain practical or secure once construction activity begins.

Clear site records also make a difference. Control reports, mark sketches, coordinates, levels and datum information should be issued in a format the construction team can use. The drawings should distinguish between design information and marks physically available on site. When there is uncertainty, the safest approach is to stop and verify rather than build from an assumed point.

Typical civil activities that rely on accurate control

The need for control extends well beyond initial earthworks. It supports setting out subdivision roads, drainage pits and pipe alignments; checking trench invert levels; positioning retaining structures; forming kerb and gutter; and verifying pavement layers against the design surface.

It is equally important at project interfaces. New works often need to tie into an existing road, driveway, stormwater system or neighbouring development. These locations can have little tolerance for error because levels and grades must work together. An accurate survey of the existing condition, tied to the correct datum, is essential before final set-out decisions are made.

As-built surveys rely on the same framework. They provide evidence of what was constructed and help engineers, councils, asset owners and future designers assess whether works meet approved requirements. If the original control is weak, final survey information can be difficult to rely on or reconcile with design data.

Where a registered surveyor adds value

Not every control task requires cadastral work, but property boundaries, easements, road reserves and subdivision interfaces frequently sit close to civil construction. In these situations, it is essential to distinguish construction control from legal boundary definition.

Only a registered land surveyor can determine and mark cadastral boundaries for NSW purposes. Where civil works approach a boundary, easement or title constraint, early coordination can prevent the common mistake of treating an old fence, kerb or assumed offset as a legal line.

Central Coast Surveyors can coordinate detail and contour surveys, boundary information, civil set-out and final survey requirements so the project team works from consistent information. That coordination is particularly useful when architects, civil engineers, planners and builders are all working to a tight approval or construction program.

Questions to settle before set-out begins

Before issuing a crew to site, project managers should confirm the design datum, required coordinate system, nominated benchmark, applicable tolerances and who is responsible for protecting control marks. They should also identify whether the work has boundary, easement or council interface issues that require registered surveyor input.

It is worth confirming the format and timing of deliverables as well. A contractor may need a simple site control sketch for daily use, while the engineer may require a verification report, machine-control model checks or detailed as-built data. Agreeing on these requirements at the start avoids duplicated visits and gaps in documentation later.

Reliable civil construction starts with a reference system everyone can trust. Establish the control before the first cut, protect it as the site changes, and verify it at the moments when a small error would become a costly one.

A search for a “lodge 149D building certificate survey” usually means a property owner, purchaser or consultant needs to show council exactly where an existing building sits in relation to the legal boundaries. This is not a formality to leave until the application is ready to lodge. If a shed, dwelling addition, deck, garage or other structure is close to a boundary, the survey information can determine what needs to be addressed before council can assess the application.

In NSW, a building certificate is now issued under section 10.7 of the Environmental Planning and Assessment Act 1979. Many people, plans and older documents still refer to the former section 149D, which is why the term remains common. The name has changed, but the practical issue remains the same: council needs reliable evidence about the building and its position on the land.

What a 149D building certificate survey is for

A building certificate can be sought for an existing building or part of a building. It may be requested when work was completed without the expected approvals, when a property is being sold, or when a lender, purchaser, solicitor or council needs greater certainty about an existing structure.

The certificate does not retrospectively grant development consent, certify every aspect of construction or resolve a boundary dispute. Broadly, it provides protection from certain council orders and proceedings relating to the building for a set period, generally seven years, subject to the legislation and the certificate issued. Council may still require other information, and separate planning, building, fire safety, structural or environmental matters can remain relevant.

An identification survey is commonly used to support the application because it provides an accurate, independent record of the land boundaries and the improvements on the site. For a building near a side, rear or waterfront boundary, an aerial image, old sketch or tape measurement is not a substitute for cadastral survey work. Small apparent differences can have significant consequences where setbacks, easements or encroachments are involved.

When council may need an identification survey

Each application is assessed on its facts, and council requirements can vary. A survey is particularly likely to be needed where the position of a building relative to a title boundary is unclear or potentially non-compliant. This often arises with older garages, carports, decks, additions, retaining structures and outbuildings.

It is also valuable where fences have moved over time, original survey marks are not visible, the property has irregular boundaries, or the site is affected by an easement. On Central Coast properties, sloping land, dense vegetation, older holiday homes and foreshore locations can make visual assumptions especially risky. A fence line may be a useful occupation feature, but it is not proof of the legal boundary.

For waterfront or environmentally sensitive land, the building location may need to be considered alongside lease areas, reserves, restricted land or other tenure issues. The exact survey scope should be set after reviewing the title information, available deposited plans and council request. Ordering the wrong type of survey can cost time and lead to avoidable follow-up work.

What the survey plan usually shows

A registered surveyor investigates the title boundaries, searches relevant survey records and carries out field measurements using appropriate survey control. The resulting identification survey plan commonly shows the legal boundaries, existing fencing or occupation, the footprint of relevant buildings, offsets to boundaries and registered easements that affect the land.

The plan may also identify apparent encroachments or discrepancies between occupation and title boundaries. That finding does not automatically mean a building certificate will be refused. It does, however, give the owner and their advisers the factual basis to understand the issue before making decisions about approval, redesign, neighbour discussions, an easement or other action.

A surveyor records what exists and where it is located. They do not decide whether council will accept a variation, whether construction meets the Building Code requirements, or whether a structure is sound. Those questions may require input from council, a building certifier, town planner, engineer or solicitor.

The practical process for lodging a building certificate application

The fastest path is usually to identify the information council needs before submitting the application. Starting with an accurate survey prevents the common problem of lodging incomplete material, then pausing while additional documents are requested.

First, establish the purpose of the certificate. Is it for a sale, an existing unapproved structure, finance, a proposed subdivision, or a council compliance matter? The answer affects the urgency and the reports that may be required.

Next, have the site and title information reviewed by a registered surveyor. This allows the survey scope to be matched to the building in question. For example, a survey focused on a detached garage may not be sufficient if council also needs the dwelling extension, deck and retaining wall shown.

Once fieldwork and plan preparation are complete, the survey plan can be provided with the building certificate application and supporting documents. Depending on the building and the issues identified, council may request plans, photographs, an engineering assessment, a building consultant’s report, fire safety information, drainage details or evidence addressing planning controls. The application is not complete simply because an identification survey has been prepared.

Council then assesses the material and may inspect the site or ask further questions. Allowance should be made for this review period, especially if the certificate is connected to a contract deadline. A purchaser should not assume that a certificate can be obtained immediately after an issue is found during conveyancing.

Common issues that delay the application

The most frequent delay is relying on an old plan that does not show the current building footprint. A development application site plan, architectural drawing or real estate floorplan may be useful background material, but it is not necessarily evidence of current legal boundary position.

Another issue is confusing a building certificate with a boundary adjustment. If a wall, eave, footing or deck crosses a title boundary, council’s building certificate process does not transfer land or create rights over a neighbour’s property. Depending on the circumstances, the solution could involve removal or alteration, a negotiated easement, a boundary adjustment or legal advice. These options carry different costs, timeframes and risks.

Easements are also regularly overlooked. A structure can be wholly within its own title boundary and still affect a drainage, sewerage, access or services easement. The survey plan helps reveal the location of registered interests, but the relevant authority or beneficiary may need to be consulted before any issue is resolved.

Finally, do not assume the visible fence is correct. On established Central Coast sites, fences may have been rebuilt around gardens, driveways or retaining walls rather than on the surveyed line. Measuring a building from that fence can create false confidence and make later discussions more difficult.

Why registered surveyor input matters

A building certificate survey deals with legal boundaries, not just dimensions on the ground. In NSW, cadastral boundary definition and identification survey plans require the judgement, records research and field verification of a registered land surveyor.

Central Coast Surveyors can assess the property records, locate and measure the relevant improvements, and prepare clear survey information for the wider project team. Where an issue is identified, early factual advice helps architects, planners, engineers and property owners coordinate the next step rather than working from assumptions.

There is a trade-off between seeking the minimum information now and commissioning a survey that properly addresses the site. For a straightforward building well clear of boundaries, the scope may be limited. For an older or constrained property, a more detailed investigation at the outset is often the more cost-effective option because it exposes issues before an application, sale or construction programme is committed.

Before lodging, provide the surveyor with the council request, any existing approvals, building plans and the specific structures to be assessed. Clear instructions at the start give the application a better chance of moving forward with accurate information rather than returning for corrections.

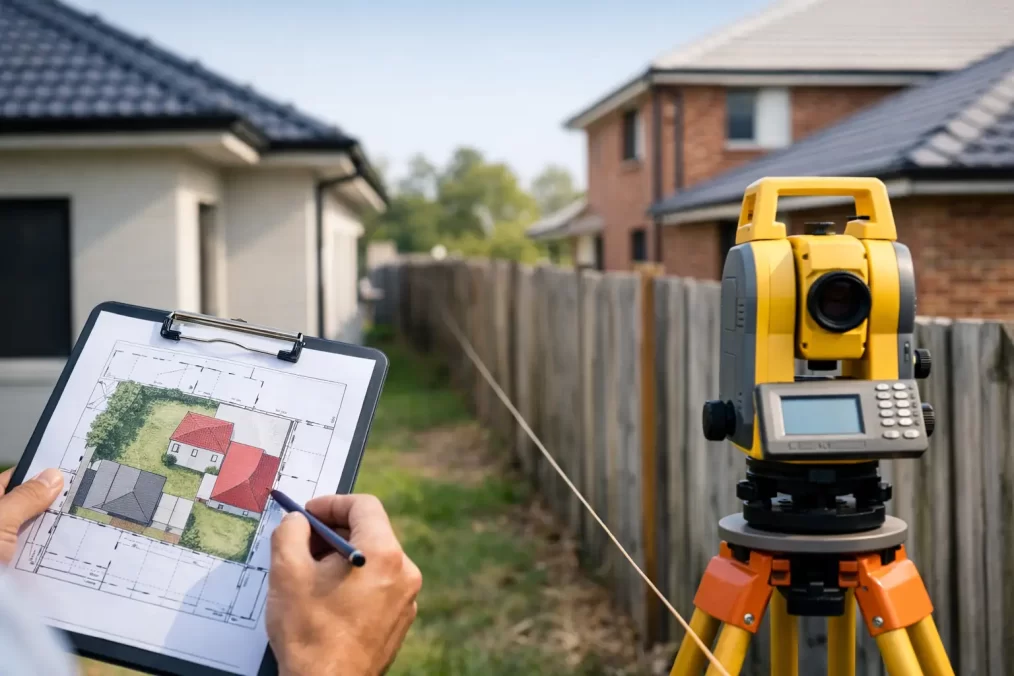

A fence that looks slightly out of line, an older garage close to a side boundary, or a neighbour’s roof gutter crossing the apparent boundary can become a serious issue when you sell, renovate or apply for a building certificate. Knowing how to check building encroachment means replacing assumptions with surveyed evidence before the issue delays an approval, contract or construction programme.

In NSW, an encroachment occurs where part of a building or structure extends over a property boundary, whether above, below or at ground level. It may involve a wall, eave, gutter, deck, footing, retaining wall, balcony, carport or pool structure. The visible part of the structure is not always the whole story. Footings and underground services can cross boundaries without any obvious sign on the surface.

Start with the right question

The first question is not simply, “Where is the fence?” It is whether the building has been constructed wholly within the legal parcel shown on the title, and whether any apparent overlap is authorised by an easement, lease, agreement or other registered interest.

Fences, hedges, garden beds and old pegs are useful clues, but they are not reliable proof of a boundary. Fences can be built for convenience rather than on the legal line. They may also have moved, been replaced or been set inside a boundary to avoid a retaining wall, creek line or difficult terrain. On Central Coast sites, sloping land, dense vegetation and older coastal development can make visual judgement particularly unreliable.

Aerial imagery and online mapping can help identify a possible concern, but they are not accurate enough to establish a legal boundary. Their image alignment can be offset by metres. Likewise, a deposited plan shows parcel dimensions and boundaries, but cannot confirm whether an existing building sits correctly in relation to them without field measurement and survey analysis.

How to check building encroachment properly

The dependable method is to engage a registered land surveyor to complete an identification survey. This survey compares the title boundary with the physical improvements on the land and identifies relevant encroachments, if any.

1. Gather the documents you already have

Start with the current certificate of title, deposited plan and any available building plans, previous surveys, easement documents or development consent drawings. If the property was recently purchased, the contract may include a survey report or references to known boundary issues.

These documents give the surveyor useful background, but do not replace their own title investigation. A registered surveyor examines the current legal information and the surrounding cadastral evidence required to determine the boundary correctly.

2. Identify what needs to be checked

Be specific about the structure and the reason for the survey. A purchaser may need to know whether a neighbouring garage or awning crosses the boundary. A homeowner planning an extension may need confirmation that an existing dwelling is correctly located before design work proceeds. A builder may need an accurate boundary mark-out before excavation and set-out.

Tell the surveyor about suspected issues, proposed works and tight project dates. This helps define whether an identification survey alone is suitable or whether you also need a detail and contour survey, boundary mark-out, construction set-out or a separate report for council.

3. Have the boundary and building measured on site

The surveyor locates available survey marks, measures physical evidence across the site and, where necessary, considers adjoining parcels. Modern field equipment improves efficiency, but the legal determination comes from the registered surveyor’s analysis of the evidence, plans and measurements.

The building is then measured in relation to the determined boundaries. This may include walls, eaves, gutters, decks, steps, retaining walls and other improvements relevant to the purpose of the survey. If access to a neighbouring property is needed to measure a suspected encroachment accurately, the surveyor will discuss the practical requirements with you.

4. Review the identification survey results

The survey plan or report will show the relationship between the improvements and the property boundaries. It may reveal that the apparent issue is not an encroachment at all. For example, a fence may be offset while the house is correctly located, or a roof overhang may sit inside the boundary despite looking close from ground level.

If there is an encroachment, the result should identify what crosses the boundary and the extent of the overlap. The next steps depend on the structure, how long it has existed, the title position, the parties involved and whether future development is proposed.

5. Act before the issue becomes urgent

Do not wait until contracts have been exchanged, a builder is booked or a council deadline is approaching. Boundary questions can involve discussions with neighbours, legal advice, design changes, approvals or title documentation. Early identification provides more options and usually reduces disruption.

Common signs that warrant an identification survey

A survey is worthwhile whenever a structure is close to a boundary and the consequences of being wrong are significant. This often arises before buying or selling a property, lodging a building certificate application, building an addition, replacing a boundary fence, subdividing land or resolving a neighbour dispute.

Pay particular attention to older garages, carports, decks and sheds near side or rear boundaries. Eaves and gutters are often the first visible sign, while balconies, stairs and retaining walls can create more complex questions. Waterfront, irregular and heavily sloping sites also benefit from early boundary clarification because physical occupation may not align with the parcel shown on a plan.

A neighbour raising a concern is another reason to act promptly, but it does not prove an encroachment. Keep communication factual and avoid agreeing to move or alter a structure until the legal boundary has been surveyed. A measured result gives both parties a clearer basis for discussion.

What happens if an encroachment is found?

An encroachment does not automatically mean a building must be demolished. The appropriate response depends on the facts. A minor eave intrusion may be approached differently from a dwelling wall, footing or retaining structure extending over a boundary. Existing easements, the age of the works, planning controls, lender requirements and the intended use of the property can all matter.

Possible pathways can include negotiating an agreement with the adjoining owner, altering or removing part of the structure, creating an easement, adjusting a proposed design, or seeking legal advice about available remedies. Some solutions require survey plans for registration with NSW Land Registry Services. Where a boundary adjustment or easement is proposed, a registered surveyor can prepare the necessary survey documentation and coordinate with the project team.

Do not assume that neighbour consent alone resolves the title issue. An informal agreement may not satisfy a future purchaser, lender, council assessment or conveyancer. Equally, do not assume a survey result answers every legal question. A survey establishes the location of boundaries and improvements; legal advisers provide advice on rights, obligations and dispute resolution.

Avoid costly shortcuts

The most common mistake is treating an old fence line as the boundary. Another is relying on a real estate listing plan, satellite image or builder’s sketch as though it were a cadastral survey. These sources may be useful for preliminary planning, but they are not designed to determine legal occupation.

It can also be tempting to order the narrowest possible service when an issue first appears. That may be appropriate for a straightforward question, but projects often need more than one survey outcome. If an extension is planned, combining early boundary confirmation with a detail and contour survey can give the architect reliable site information from the outset. Before construction, a precise boundary mark-out and building set-out protect the design intent on the ground.

For property owners, the value is certainty before committing to expensive decisions. For architects, builders and developers, it is dependable information that reduces redesign, site delays and difficult conversations after work has started.

When timing matters

Allow time for field work, title research, plan preparation and any follow-up discussions. Turnaround requirements vary with site access, vegetation, terrain, the availability of survey marks and the complexity of adjoining titles. A straightforward residential site is different from a large rural parcel, strata development or property affected by multiple easements.

If you suspect an encroachment, provide the issue early and request an assessment from a registered surveyor rather than guessing from a fence or online map. A clear identification survey gives you a practical starting point for design, negotiation or legal advice – before a small boundary question becomes an expensive project problem.

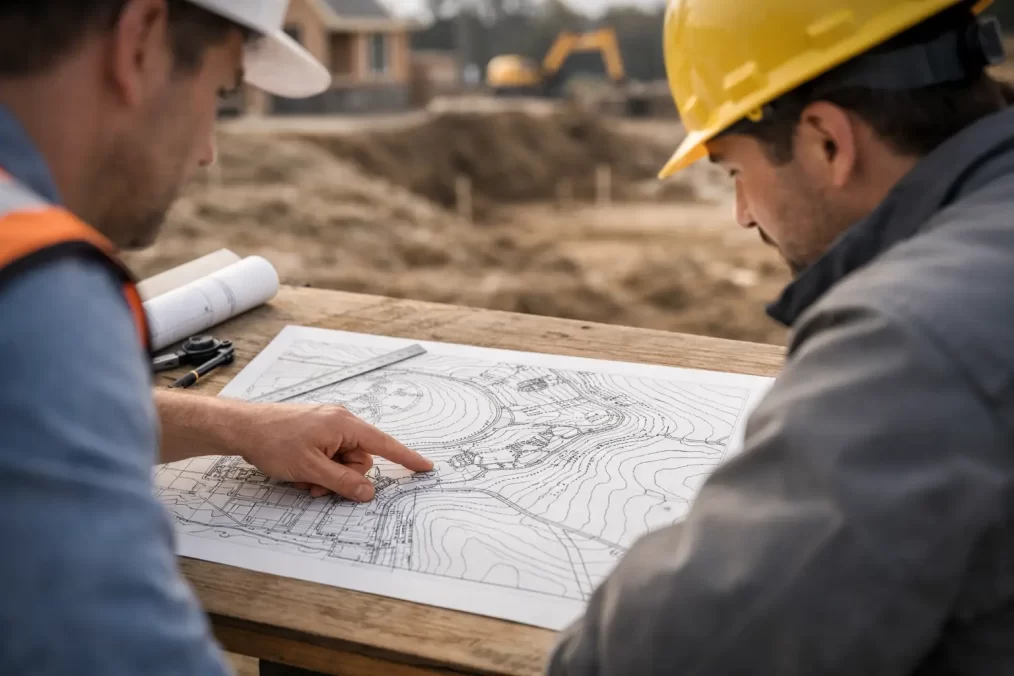

A contour plan can tell you far more than whether a block is “sloping”. It shows how the land rises and falls, where water is likely to move, and whether a proposed building, driveway or retaining wall may need more work than expected. Knowing how to read contour plans helps property owners and project teams make better decisions before design and construction costs start to build.

For a new home, extension, subdivision or civil works project, the contour plan should be read alongside the survey legend, boundary information and any proposed design levels. It is not a substitute for engineering or architectural advice, but it gives every project stakeholder a reliable starting point.

Start with what the plan is showing

A contour plan is usually part of a detail and contour survey, also called a topographic survey. A registered surveyor measures the site and presents physical features such as buildings, fences, driveways, kerbs, trees, visible services, pits, walls and ground levels on a scaled drawing.

The contour lines are the key to understanding the landform. Each line connects points of equal elevation. If a contour is labelled 12.0, every point on that line is at an elevation of 12.0 metres relative to the plan’s nominated datum.

Before interpreting the levels, check the title block and legend. These typically identify the survey date, plan scale, contour interval, level datum and survey notes. The north point is also essential. It helps you understand orientation, solar access and the likely direction of drainage when considered with the levels.

Survey information reflects conditions observed at the time of survey. A site that has since been excavated, filled, cleared or built upon may no longer match the plan exactly. This matters on active construction sites and properties that have changed hands or undergone previous works.

Understand the contour interval

The contour interval is the vertical difference between adjacent contour lines. On many residential plans, contours may be shown at 0.2-metre or 0.5-metre intervals. A plan with contours labelled 10.0, 10.5 and 11.0 has a 0.5-metre interval.

Do not assume the interval from the appearance of the drawing. A 0.5-metre change in elevation can look dramatic on a short block and barely noticeable across a large rural site. Read the stated interval first, then use the labels to confirm whether land is rising or falling.

Intermediate contours are often lighter or unlabelled, while index contours may be darker and labelled at wider intervals. For example, between a labelled 10.0 contour and 11.0 contour, there may be four finer lines representing 10.2, 10.4, 10.6 and 10.8 metres. The legend should remove any doubt.

Read the direction and steepness of the fall

Contour numbers increasing across the site mean the ground rises in that direction. Numbers decreasing mean it falls. This simple check is the foundation for understanding a block.

The spacing between lines shows the steepness of the terrain. Closely spaced contours indicate a steep slope because the ground changes height quickly over a short horizontal distance. Widely spaced contours indicate gentler land. Where contours are almost parallel and evenly spaced, the site generally has a consistent fall. Curving, irregular lines can reveal ridges, drainage lines, benches and local hollows.

A contour plan does not always show the exact grade at a glance. To estimate it, compare the vertical level change with the horizontal distance measured using the plan scale. A fall of 1 metre over 20 metres is a 5 per cent gradient. For accurate driveway grades, accessible paths, drainage design or earthworks quantities, designers should work from the survey data and calculate the required levels rather than relying on a visual estimate.

Spot levels provide the detail between contours

Spot levels are individual surveyed elevations, commonly shown as a number beside a small cross, point or feature. They are particularly valuable at building corners, kerb lines, driveway edges, floor levels, pits, retaining walls and changes in surface material.

Contours describe the general shape of the land. Spot levels show the precise elevation at a particular surveyed point. If you are considering an extension near an existing house, spot levels around the slab, threshold and adjoining ground can help the designer assess step-downs, stormwater paths and finished floor level options.

Pay attention to abbreviations. Existing finished floor levels, kerb levels, gutter levels, ridge levels and invert levels may all appear on a plan. They are not interchangeable. An invert level is the level at the bottom inside a drainage pipe or pit, while a finished floor level refers to the completed internal floor surface. Confusing these figures can lead to incorrect drainage or construction assumptions.

Check the datum before comparing levels

Most contemporary survey plans in NSW reference levels to Australian Height Datum, often abbreviated to AHD. This provides a common vertical reference point, allowing consultants to compare levels across survey, engineering and architectural documents.

However, some older plans or limited site sketches may use an assumed datum. An assumed datum is a local reference chosen for that specific job, such as 100.00 at a nominated point. It can be useful for relative design work, but it should not be compared directly with AHD levels unless the relationship between the two datums is known.

This is especially relevant for coastal and waterfront properties, flood planning, connection to public drainage and projects where proposed levels must be coordinated with council or engineering information. A level of 5.20 on one drawing may not mean the same thing as 5.20 on another.

Use contours to understand drainage, not to design it

Water generally travels downhill, crossing contours at approximately right angles. By following the lower numbers, you can identify the likely broad direction of surface flow across the site.

A valley or drainage line often appears where contour lines form a pointed shape that faces uphill. A ridge is the opposite: contour lines bend downhill around higher ground. These patterns can influence where runoff concentrates during heavy rain, where stormwater collection may be needed, and where cut or fill may create new drainage issues.

Existing drainage pits, swales, table drains and kerb inlets should also be located on the survey where visible. Their presence does not confirm capacity, legal point of discharge or approval for a new connection. A hydraulic engineer or suitably qualified designer may need to assess those questions, particularly where a development changes roof area, paving or site levels.

On the Central Coast, this early assessment is valuable on sloping, bushland and coastal sites where runoff, rock, retaining requirements and access can affect the feasibility of a design. A modest-looking fall on paper can become a significant construction consideration once driveway gradients, stormwater discharge and usable outdoor space are factored in.

Separate existing ground from proposed design levels

A contour survey records existing conditions. It does not tell you where a new building should sit or how a site should be regraded. Proposed levels are normally shown on architectural, civil or structural drawings and may include finished floor levels, pavement levels, retaining wall heights and proposed contours.

When comparing documents, identify whether each notation is existing or proposed. Existing contours are often shown as solid or lighter lines, while proposed levels may be dashed or given a separate colour in digital plans. The drawing legend controls this, so do not rely on drafting conventions alone.

The difference between existing and proposed ground levels indicates potential cut and fill. Small changes may be manageable, while larger changes can affect retaining walls, spoil removal, service connections, access, neighbour impacts and approval requirements. The best outcome is not always the design with the least excavation. It depends on drainage, soil conditions, building form, bushfire constraints, access and the applicable planning controls.

Do not mistake a contour plan for a boundary plan

A detail and contour survey often shows boundaries for design reference, but the purpose and certification of the plan matter. If a fence, wall or building is close to a boundary, do not assume the visible occupation marks the legal boundary position.

For fencing disputes, building near a boundary, title matters, encroachments or subdivision work, a cadastral survey or identification survey may be required. Those services involve examination of title evidence and field work to determine or verify boundary position. Contours cannot resolve a boundary question.

Common errors when reading contour plans

The most costly errors usually come from treating one piece of plan information as if it answers every question. Avoid assuming that contours show legal boundaries, that a nearby pit guarantees stormwater connection, or that a single spot level represents the whole building area.

Also check the date of survey, scale and notes before sending the plan to a designer or builder. Enlarging a PDF does not make dimensions more accurate, and a photo of a plan can lose critical legend information. If the site has substantial vegetation, dense undergrowth, inaccessible areas or recent earthworks, ask whether further survey work is needed before finalising design levels.

How to read contour plans with confidence

A well-prepared contour plan gives architects, engineers, builders and owners a shared picture of the site. Start with the contour interval and datum, establish which way the site falls, then use spot levels and visible drainage features to understand the areas that need closer attention.

If the plan raises questions about floor levels, driveway grades, retaining, drainage or boundaries, resolve them before committing to a design. Early discussion with a registered surveyor can turn an uncertain block into clear, usable information for the consultants who need to move the project forward.

A title issue rarely announces itself before it affects a sale, building certificate, fence location or subdivision programme. A boundary that appears straightforward on a real estate plan may not align with occupation on site, older fencing or the dimensions required for a new registered plan. Understanding the property title survey process helps property owners and project teams identify what is needed early, engage the right professional and avoid expensive changes later.

In NSW, there is no single document called a “property title survey” that suits every situation. The process may involve an identification survey, a cadastral boundary survey, easement work or a subdivision survey, depending on the decision that needs to be made. The common thread is that a registered surveyor investigates the legal boundary and prepares survey information or plans that can be relied on for the relevant purpose.

What a property title survey process is designed to establish

Land title records describe legal interests in land, including ownership, easements, restrictions and the lot boundaries shown on registered plans. A survey examines how those records relate to the physical parcel of land.

For an existing home, the immediate need may be an identification survey for a council building certificate, waterfront licence transfer or conveyancing matter. For a new dwelling, an architect may need the boundary established before finalising setbacks and siting. For a subdivision, the work progresses through survey, plan preparation, approvals and registration to create new titles.

It is worth separating two ideas that are often confused. A title search and deposited plan provide valuable legal and dimensional information, but they do not confirm that a fence, wall or driveway sits on the boundary. Likewise, a peg found in the ground may be useful evidence, but it should not be treated as conclusive without assessment by a registered surveyor.

Step 1: Define the decision the survey must support

The fastest way to start well is to be clear about why the survey is required. A surveyor will usually ask for the property address, lot and deposited plan details if available, the scope of proposed works, and any relevant council, consultant or conveyancing requirements.

This early discussion matters because the survey standard and deliverable must match the risk. Marking an approximate line for preliminary design is different from re-establishing a boundary for construction close to a side setback. Creating an easement or new Torrens title lot requires a far more formal process than locating existing improvements for an identification report.

For Central Coast sites, access, vegetation, steep terrain, waterfront interfaces and older development patterns can all influence the time required. Raising these factors at the quoting stage allows the surveyor to plan suitable fieldwork and coordinate with architects, planners, engineers or builders before the project is held up.

Common reasons clients need title-related survey work

A property title survey process is commonly triggered by a proposed extension near a boundary, an uncertain fence line, a sale or building certificate, an easement for access or services, or a subdivision and title registration project. Each involves different documentation, so the right question is not simply “Do I need a survey?” but “What decision must this survey allow us to make?”

Step 2: Research titles, plans and survey evidence

Before attending site, the registered surveyor reviews the available land title information and relevant historical records. This can include current title particulars, deposited plans, survey plans, dealings that created easements or restrictions, and adjoining parcel information where it affects boundary definition.

The purpose is to understand the original survey framework and locate the evidence needed to test the boundary on the ground. Older parcels can be more complex than modern estates. Marks may be missing, disturbed by past construction, buried under landscaping or affected by road upgrades. Titles can also carry easements that limit where a building, pool, retaining wall or services may be placed.

Research is not administrative paperwork added after the fact. It is the foundation for defensible cadastral work. A surveyor needs to reconcile the title dimensions with surrounding marks, adjoining surveys and the broader survey control network where applicable.

Step 3: Complete fieldwork and assess the boundary

On site, the survey team searches for physical evidence such as survey marks, reference marks, old corner marks and occupation features. They also measure relevant buildings, fences, retaining walls, driveways and other improvements where these are part of the brief.

Modern instruments, including Trimble surveying technology, allow precise and efficient measurement. However, technology does not replace professional judgement. The surveyor must evaluate the quality of each mark and determine whether the evidence supports the legal boundary position under NSW cadastral requirements.

This is why a quick measurement from a phone, consumer GPS device or an old sketch is not a substitute for a registered survey. It may be useful for an early conversation, but it cannot provide the certainty needed where construction, title rights or neighbour discussions are involved.

If a boundary mark needs to be placed or reinstated, the surveyor can advise on the appropriate method. Where occupation differs from the surveyed boundary, the report or plan will identify the issue clearly so the client can obtain legal advice or adjust the project before work begins.

Step 4: Prepare the right survey deliverable

The output should be practical for the people making decisions. An identification survey typically shows the property boundaries in relation to existing improvements and may identify encroachments or other relevant observations. A boundary mark-out gives a builder or owner the physical position of a re-established boundary, subject to the survey scope.

For design work, a detail and contour survey may be combined with accurate boundary information. This gives architects and engineers a reliable base for setbacks, levels, drainage design and building placement. It is often more efficient to coordinate these requirements from the outset rather than commission separate site visits later.

For easement and subdivision work, the surveyor prepares plans and supporting documentation to meet the requirements of NSW Land Registry Services and relevant approval authorities. The plan must be accurate, compliant and consistent with the approved development pathway. Errors at this stage can delay registration and affect settlement, construction sequencing or finance arrangements.

Step 5: Coordinate approvals, signatures and registration

A subdivision or easement does not become effective simply because fieldwork is complete. Depending on the proposal, the process may involve development consent, a subdivision certificate, lender consent, utility authority requirements, council conditions, legal documentation and plan examination.

The registered surveyor works within this chain, preparing and updating survey plans as required and coordinating with the project team. A planner may manage development approval conditions, an engineer may finalise servicing design, and a solicitor or conveyancer may prepare dealings. Clear communication between these parties keeps technical issues from becoming late-stage surprises.

Once the plan and associated documents satisfy the relevant requirements, they are lodged for registration. Registration is the point at which new lots, easements or other title changes are formally recorded. Timing varies with the complexity of the project, the readiness of supporting documents and the requirements of the assessing authorities.

What can slow the process down

The most common delays are avoidable, although not every issue can be predicted. Missing boundary evidence, incomplete title information, access constraints, unapproved structures near boundaries and late changes to a building or subdivision layout can all require additional work.

A fence dispute is another example where care is needed. A survey can establish the boundary position, but it does not by itself resolve who must pay for a fence or determine legal rights arising from an encroachment. Those matters may require legal advice. The surveyor’s role is to provide accurate, independent spatial evidence on which informed decisions can be based.

For a straightforward identification survey, the pathway is usually shorter than for an easement or multi-lot subdivision. It depends on the purpose, site history, available survey marks and the level of approval and registration work involved. Requesting the survey before designs are locked in remains one of the best ways to protect programme and budget.

Choosing the right surveyor for title work

For work that defines or changes a legal boundary, engage a NSW registered surveyor. Registration, formal training and demonstrated competency matter because cadastral surveying carries legal consequences beyond ordinary site measurement.

Ask what survey type is proposed, what records will be reviewed, whether boundary marks will be located or reinstated, and what plan or report will be supplied. If your project involves a builder, architect or planner, provide their drawings and requirements early. A surveyor who can coordinate across the full project lifecycle can reduce duplicated fieldwork and keep everyone working from the same base information.

A property title survey is most valuable before assumptions become concrete, literally or financially. Whether you are preparing a building certificate, designing close to a boundary or creating new lots, early registered-surveyor advice gives the project a clear line to work from.

A builder waiting on set-out, an architect ready to finalise a design, or an owner facing a settlement date all have the same practical question: how soon can the survey be delivered? Land survey turnaround times can directly affect council submissions, construction sequencing, finance, contracts and legal documentation. The right answer depends on the survey type, the site and the information already available – not simply the date a surveyor attends.

For projects across the Central Coast, a clear scope and early engagement usually make the greatest difference. A registered surveyor can identify the work required, obtain the relevant records and set realistic delivery expectations before a delay becomes costly.

Typical land survey turnaround times

There is no single timeframe for every survey. Fieldwork may take only a few hours on a straightforward residential block, but research, processing, plan preparation, coordination and certification can take longer than the site visit itself.

A detail and contour survey for a typical accessible residential site is often one of the faster services. Once the work is booked, site data can generally be captured efficiently using modern survey equipment, then processed into a plan suitable for an architect, designer or engineer. Complex topography, dense vegetation, large acreage, waterfront conditions or restricted access can extend the programme.

Identification surveys and boundary mark-outs require more title and cadastral research than a topographical survey. The surveyor must examine deposited plans, title information, existing marks and the legal relationship between neighbouring parcels before giving an opinion on boundaries. If original marks are missing, disturbed or difficult to locate, additional fieldwork and calculation may be needed. That diligence protects the client from relying on an assumption about where a boundary lies.

Construction set-out can be arranged quickly when approved drawings, coordinates, levels and site access are ready. However, the timing is tied closely to the builder’s programme. Changes to architectural or engineering drawings, unprepared excavation or an inaccessible site can mean a return visit is necessary.

Subdivision, easement and strata work operates on a different timescale. Survey preparation is only one part of a broader approval and registration process involving councils, certifiers, planners, solicitors, lenders, utility authorities and NSW Land Registry Services. A survey plan may be prepared promptly, but the overall project cannot progress until each required party has reviewed, approved or executed their component.

What actually affects survey delivery

The most common reason for delayed survey delivery is an incomplete brief. A request for a “survey” can mean very different things: a contour plan for a new dwelling, an identification survey for a building certificate, a boundary re-establishment before fencing, or a full subdivision plan for registration. Each has different legal, technical and drafting requirements.

The site itself also matters. A cleared, accessible block with visible survey marks is not comparable to a steep bush block, a waterfront parcel, a property with extensive retaining walls, or a site affected by tidal conditions. Central Coast properties can present a mix of undulating terrain, mature vegetation, narrow access, older development and complex title history. These conditions do not prevent accurate work, but they need to be allowed for in the survey programme.

Information from the client and project team is equally influential. Current architectural plans, engineering drawings, DA conditions, previous survey plans, the correct lot and DP details, and contact details for site access all help the surveyor begin without avoidable back-and-forth. For construction work, issuing the latest approved drawings is essential. Setting out from superseded plans creates far greater risk than waiting briefly for the correct information.

External parties can also affect timing. An identification survey may need clarification of adjoining title information. A subdivision may require council conditions to be satisfied before the final plan can proceed. Easement plans can require agreement between affected owners and review by legal representatives or service authorities. These are not surveying delays in the narrow sense, but they are part of the real project timeline.

Weather is another variable, particularly for detailed feature surveys and construction set-out. Heavy rain, flooding, unsafe ground conditions and poor visibility can make fieldwork impractical or compromise the accuracy expected from a professional survey. A short reschedule is preferable to collecting data that does not meet the standard required for design or construction.

Faster is useful only when the scope is right

Rapid delivery is valuable when a project team is waiting to make a decision. But speed should not mean skipping cadastral research, reducing site checks or issuing a plan that does not suit its intended purpose.

For example, a designer may only need a detail and contour survey to establish levels, visible features, services and site constraints for concept design. A builder preparing to build close to a side boundary may need a cadastral boundary mark-out as well. Treating those as the same service can produce a fast result that is insufficient for the next stage.

The most efficient approach is to tell the surveyor what decision the plan needs to support. Is it for a DA, a building certificate, a waterfront licence transfer, fencing, excavation, a new dwelling, subdivision or final registration? This enables the registered surveyor to recommend the correct survey at the outset and avoids paying for a second mobilisation or revised plan later.

How to reduce delays before the surveyor arrives

Clients and consultants can materially improve turnaround by preparing the job properly. Provide the full property address, lot and deposited plan details where known, the purpose of the survey, expected delivery date and any relevant plans or approval documents. If there is a known issue – such as a neighbour dispute, missing fence alignment, difficult access or an urgent settlement – raise it early.

Site access should be confirmed before the booking. Gates need to be unlocked, dogs secured, tenants or occupants notified, and any access restrictions explained. On vacant land, clear directions and safe entry can save significant time. For construction sites, the surveyor should know site induction requirements, PPE expectations, crane or plant movements and the appropriate site contact.

Project teams should also nominate who will receive the final files. Architects may need a PDF plan and CAD data. Engineers may require a particular coordinate system or file format. Builders may need marked-up construction drawings and a set-out appointment coordinated with excavation or formwork. Agreeing these requirements early prevents a technically correct deliverable from being unusable in practice.

When a deadline is genuinely fixed, explain why. A pending council lodgement, concrete pour, contract condition or finance date helps the surveyor assess whether the work can be prioritised, whether more information is needed immediately, and whether another sequencing option may protect the programme.

Turnaround for approvals, construction and title work

Different project stages call for different expectations. A preliminary feature survey is often the starting point for design and may need to be commissioned before the architect can make meaningful progress. Waiting until plans are nearly complete can force redesign if levels, easements, drainage features, vegetation or boundary conditions reveal constraints.

During construction, set-out is most effective when it is treated as part of the programme rather than an emergency booking. Give notice before excavations, pier drilling, formwork, structural steel or final floor-level checks. The surveyor can then coordinate the right control, drawings and field time to support the construction sequence.

For subdivision and title matters, allow time for the full chain of actions. Survey work must align with planning approvals, servicing requirements, legal documentation, owner signatures and registry processes. A registered surveyor can explain the surveying component clearly, but no responsible consultant should promise a registration date before the external requirements are understood.

Questions to ask when comparing survey quotes

Price matters, but a low quote without a defined scope can be expensive if the work does not satisfy the next consultant, council requirement or construction need. Ask whether the quoted timeframe covers fieldwork only or the completed plan, what files are included, whether title and cadastral research is included, and what assumptions have been made about access and site conditions.

It is also reasonable to ask who will undertake and review the work. For boundary, identification, subdivision and title matters, the involvement of a registered surveyor is central to reliable advice and compliant documentation. Experience with local development patterns, council expectations and NSW land title processes can reduce uncertainty where a job is not straightforward.

Central Coast Surveyors approaches timing as a project commitment rather than a generic promise. The goal is to provide the survey information the next decision-maker needs, when they need it, while preserving the accuracy and compliance that protects the project.

If your programme has a fixed milestone, raise the survey requirement before that milestone becomes urgent. A short conversation at feasibility, design or pre-construction stage can often prevent weeks of avoidable waiting later.

A proposed finished floor level can look like a single number on an architectural drawing. In practice, it can determine whether a home is suitable for a flood-prone site, whether a development consent condition has been met, and whether construction proceeds without expensive redesign. This guide to floor level compliance explains what that number means, who sets it, and how an accurate survey keeps a Central Coast project moving.

What floor level compliance means

Floor level compliance is the process of confirming that a building’s finished floor level, or FFL, meets the level required by the applicable approval, planning controls and site constraints. The required level may be driven by flood planning, drainage, coastal inundation, access, existing development, engineering design or a specific condition of consent.

There is no single compliant floor level for every NSW property. A level appropriate for a flat, serviced block in an established estate may be unsuitable for a waterfront site, a floodplain, or a sloping rural lot. The relevant requirement needs to be established for the particular land and proposal before design is fixed or concrete is poured.

A surveyor’s role is to accurately establish and report levels on a recognised datum, set out the approved design level on site where required, and verify the constructed level. The survey does not replace planning advice, engineering certification or the decision of the consent authority or certifier. It provides the reliable spatial evidence those decisions depend on.

Start with the right datum and the right site information

A floor level only has meaning when everyone is working from the same reference system. In NSW, project levels are commonly related to Australian Height Datum, known as AHD. This is the vertical datum used for many council records, flood studies and engineering designs.

Problems arise when plans use a temporary site datum, an assumed level, or a datum transferred incorrectly from an earlier drawing. A difference that appears minor on paper can become significant where a flood planning level is involved. Before relying on a stated FFL, confirm the datum shown on the survey, architectural plans, civil design and approval documents is consistent.

For an existing home, a floor level survey records the actual height of the floor at selected points, generally in relation to AHD. It may also capture surrounding ground levels, kerbs, drainage features, nearby structures and other information relevant to the brief. The scope should match the question being asked. A report for a building certificate or flood assessment may need different detail from a construction check of a new slab.

On the Central Coast, this early verification is particularly useful for sites influenced by creeks, lagoons, lakes, tidal waterways or steep terrain. Local conditions can change substantially over a short distance. Do not assume a neighbour’s floor level, or a figure from a historic plan, applies to your site.

How a compliant floor level is determined

The required level is usually established through the planning and approval process, not selected by the builder or surveyor in isolation. The assessment may draw on council planning controls, a flood study, the adopted flood planning level, the development consent, engineering advice and the building design.

For flood-affected land, the flood planning level is often based on a nominated flood event plus a freeboard allowance. The exact approach, event and allowance depend on the applicable controls and circumstances. Some proposals may also require consideration of evacuation, flood-compatible materials, garage levels, habitable and non-habitable areas, or variations supported by specialist evidence.

The key distinction is between the required design level and the level that has actually been built. Both need attention. A sensible workflow is to establish the existing site levels before design, document the approved FFL clearly, set it out during construction, then obtain an as-built floor level report when the slab or floor is complete.

Common terms on plans and reports

Finished floor level is the intended final height of the occupied floor surface. For a concrete slab, clarify whether the stated level refers to the top of slab, a future finished floor covering, or another nominated point.

Natural ground level describes the ground surface before proposed earthworks, although its definition can vary in planning controls and must be checked carefully. Existing ground level is what the survey records at the time of survey. They are not always identical.

Freeboard is an additional vertical allowance above a nominated flood level. It is intended to provide a margin for uncertainty and safety, but it is not a substitute for checking the actual planning requirement.

A benchmark is a fixed reference point with a known level. It allows levels to be checked and transferred consistently during design and construction.

A practical guide to floor level compliance before construction

The best time to resolve a floor-level issue is before the design, engineering and approval documents are locked in. Once excavation, fill or a slab has commenced, correcting a level can affect cost, programme, access and drainage outcomes.

A practical sequence is to first obtain a current detail and contour survey that identifies the land, existing improvements and levels on an appropriate datum. Next, have the project team confirm the planning and approval requirements that apply to the proposed building. The architect and engineer can then nominate a design floor level that addresses those requirements while still working with site access, stairs, ramps, driveway grades, ceiling heights and stormwater design.

Before the pour, the builder should have the approved level available on site and arrange construction set-out where needed. This is not simply a matter of marking a height on a peg. The set-out must relate correctly to the design drawings, boundary position, site works and datum. Once the relevant floor has been constructed, an as-built survey can verify the achieved level against the approved requirement.

This sequence is especially valuable where several consultants are involved. A clear survey drawing and a shared datum reduce the risk of an architect designing from one level source, an engineer using another and a contractor building from a third.

What a floor level report should answer

A useful report should be clear enough for the intended reader to compare the measured floor level with the relevant required level. Depending on the purpose and agreed scope, it may identify the property, survey date, datum, benchmark or control information, measured floor levels, relevant ground levels and a plan showing where observations were taken.

The report should also state what has and has not been assessed. For example, a report may measure a floor at accessible locations but not determine whether a proposed extension satisfies every condition of a development consent. That assessment may require the consent documents, flood advice, engineering drawings and input from the appropriate approval professional.

Accuracy matters, but so does communication. A level expressed as 4.62 m AHD is only useful if the recipient understands where it was measured, what surface it represents and which requirement it is being compared against.

Where projects commonly go wrong

The most frequent issue is relying on incomplete or outdated information. An old contour plan may not show later filling, renovations, road upgrades or drainage works. Similarly, a preliminary architectural FFL can remain on drawings after approval conditions have changed.

Another common problem is treating floor level as separate from the rest of the design. Raising a home may improve flood performance, but it can create difficult driveway grades, additional retaining, stairs, accessible-entry challenges or altered overlooking impacts. Lowering the building may assist streetscape outcomes but reduce the available margin above a flood-related requirement. These trade-offs need to be considered early by the full project team.

It is also risky to request a report only after a concern has been raised by council, a certifier, insurer or purchaser. A post-construction report can establish what exists, but it cannot retrospectively make a non-compliant level compliant. Early surveying gives the team choices; late surveying often confirms a problem when choices are limited.

When to engage a registered surveyor

Engage a registered surveyor at feasibility stage if the property has flood, waterfront, slope, boundary or complex title considerations. For a straightforward new build, arrange the initial survey before design and discuss whether construction set-out and an as-built floor level report will be needed under the approval pathway.

Provide the surveyor with the site address, available plans, proposed use of the report and any known consent conditions or flood advice. If a particular FFL has already been nominated, provide that figure and its stated datum. This helps the survey scope target the information your architect, engineer, planner, certifier or council officer will actually need.

Central Coast Surveyors can coordinate the site survey, construction set-out and final level verification with the wider consultant team, so the project is working from one dependable source of level information. The practical aim is simple: establish the right level early, build to it accurately, and retain clear evidence when the project needs it.

A drainage plan can look sensible on paper and still fail on site if the ground levels are wrong. Accurate site levels for drainage design give the architect, civil engineer and builder a reliable picture of where water will travel, what can be built, and how the finished site can drain without creating problems for the building or neighbouring land.

On the Central Coast, this is rarely a theoretical exercise. Sloping blocks, low-lying land, waterfront locations, reactive soils and intense rainfall can all make minor level errors expensive. A detail and contour survey completed early provides the measured data needed to make sound drainage decisions before design work, approvals and construction are underway.

What site levels mean in a drainage plan

Site levels are the surveyed heights of features and ground points across a property. They are commonly shown relative to Australian Height Datum (AHD), a recognised vertical reference system. Using a consistent datum allows different consultants to work from the same information and compare proposed levels with existing roads, stormwater systems, floor levels and neighbouring properties.

For drainage design, a survey needs to capture more than a few spot heights. The civil engineer needs sufficient levels to understand the landform, including contours, ridges, swales, low points, driveways, kerbs, drainage pits, channels, retaining walls, building footprints and visible stormwater infrastructure.

The purpose is straightforward: water moves downhill. The design team must know the actual direction and grade of that downhill path, rather than relying on an assumed fall or an old plan that may not reflect current conditions.

Existing levels versus proposed levels

Existing levels record the site as it stands before work begins. Proposed levels show how the site is intended to be after earthworks, building construction, paving, landscaping and drainage installation.

The difference between the two is where much of the project risk sits. Raising a building pad may improve flood resilience or create usable outdoor space, but it can also change how runoff reaches a boundary. Lowering a driveway may improve vehicle access while making it harder to maintain a practical fall away from the dwelling. Good drainage design weighs these connected decisions rather than treating them as separate items.

Why accurate site levels for drainage design save time

Drainage relies on gradients. If the survey levels are incomplete, incorrectly referenced or too widely spaced, the engineer may design pipe grades, pit levels and surface falls that cannot be achieved when the builder starts work. The result can be redesign, additional excavation, deeper pits, retaining walls, pumps or delays while consultants resolve the issue.

Accurate levels also help the team identify constraints before they become construction variations. These may include a shallow public stormwater connection, a road kerb that is higher than the proposed driveway, a neighbouring property that sheds water towards the site, or a low section of land that needs a carefully controlled overland flow path.

For homeowners, this early clarity can prevent the common and frustrating outcome of completing a new home, extension or hardscape only to find water ponding near doors, crossing a path or collecting against a retaining wall. For developers and builders, it supports more reliable costing and construction programming.

The levels a drainage designer usually needs

The exact survey scope depends on the site and project, but drainage design commonly relies on levels at key locations across the block and beyond its boundaries where relevant. A useful detail and contour survey may include the following information:

• Ground levels and contours that show the natural fall of the land.
• Finished floor levels for existing buildings, plus thresholds, garages and external doors where available.
• Boundary features such as fences, walls, retaining structures and changes in surface treatment.
• Driveway, footpath, road, kerb and gutter levels, including nearby drainage pits.
• Visible stormwater pipes, pits, headwalls, channels and outlets.
• Significant trees, rock outcrops, watercourses and other physical constraints.

Not every project needs the same density of information. A relatively flat suburban block with a known kerb outlet may need a different survey scope from a steep block at Terrigal, a rural site with long overland flow paths, or land close to a creek or foreshore. The right approach is to define the intended use of the survey before fieldwork begins.

Floor levels are not just a building detail

The relationship between finished floor level and surrounding ground is critical. External paving and landscaped areas need enough fall away from the building to direct surface water away from walls, openings and subfloor areas. At the same time, proposed levels must work with accessible entries, driveway grades, ceiling heights, flood requirements and the available drainage point.

There is no universal finished floor level that suits every property. The appropriate level depends on site topography, planning controls, flood information where applicable, the building design and the lawful drainage strategy. Surveyed data gives the design team a dependable starting point for that assessment.

Surface drainage and pipe drainage need to work together

A frequent misconception is that underground pipes alone solve drainage. Pipes are only part of the system. During heavy rain, debris, blocked grates or rainfall greater than the system’s design capacity can cause water to travel over the surface. That surface flow needs a safe and deliberate route.

The drainage designer may use grades, spoon drains, grated drains, pits and pipes to collect normal runoff. They also consider overland flow paths so water does not become trapped against the house, garage, boundary wall or neighbouring property.

This is particularly relevant where a new retaining wall, pool, granny flat, driveway or extension alters natural drainage. Even a small level change can redirect runoff. Surveying the existing site accurately makes it easier to see what has changed and design practical measures around it.

Datum control matters more than most people expect

Levels are only useful when everyone is working from the same vertical reference. A site plan may show relative levels, but if those levels are not connected to a reliable datum, it can be difficult to coordinate drainage with external services or confirm final construction levels.

A registered surveyor can establish and document suitable control for the project. This gives architects, engineers and builders a common reference for design, set-out and verification. It also reduces the risk of one consultant using a different assumed datum from another.

For projects involving flood planning, public drainage infrastructure or complex civil works, AHD levels are often especially valuable because they allow levels to be assessed against external information. The required approach should be confirmed with the relevant design and approval team.

From survey to buildable drainage outcome

The most efficient sequence is to obtain a detail and contour survey before the building and civil design are fixed. The surveyor captures the site and relevant surrounding features, then supplies clear digital and plan information for the project team. The architect and engineer can develop floor levels, finished surfaces, stormwater design and any required earthworks using measured data rather than estimates.

Once the design is approved, construction set-out translates those proposed levels to the ground. Set-out is not simply marking a building footprint. Depending on the scope, it can include building corners, excavation levels, retaining walls, driveways, drainage pits and other design elements that need to be constructed at a specific level.

A final survey or level check may then be appropriate where compliance, certification, flood requirements or construction tolerances need to be demonstrated. The scope depends on the project and the requirements of the certifier, engineer, council or client.

Clear roles avoid gaps between consultants

The surveyor measures and establishes the spatial framework. The civil or hydraulic engineer designs the drainage solution, including pipe sizing, grades and lawful discharge arrangements. The architect coordinates the building design, while the builder constructs the works to the documented levels.

These roles overlap at key points, which is why early coordination matters. A registered surveyor who understands construction and approval workflows can provide data in a form the wider team can use efficiently, identify obvious site constraints, and respond when further set-out or verification is needed.

Questions to raise before commissioning a survey

Before arranging a survey for a drainage-related project, explain what is being proposed and who will use the information. Is it for a new dwelling, an extension, a subdivision, a driveway, a pool, a retaining wall or stormwater design? Will a civil engineer require AHD levels? Is there a known drainage easement, public pit, creek, flood issue or difficult access?

It is also worth asking whether levels are needed beyond the property boundary. Road kerb and gutter, adjacent ground levels and visible drainage structures can be essential to understanding the available drainage path. Capturing them early is generally more efficient than sending a survey crew back after the design team identifies a missing level.

Good drainage starts with an honest reading of the land. When the existing site is measured properly, the project team can make level decisions early, coordinate with confidence and build a result that directs water where it needs to go.
