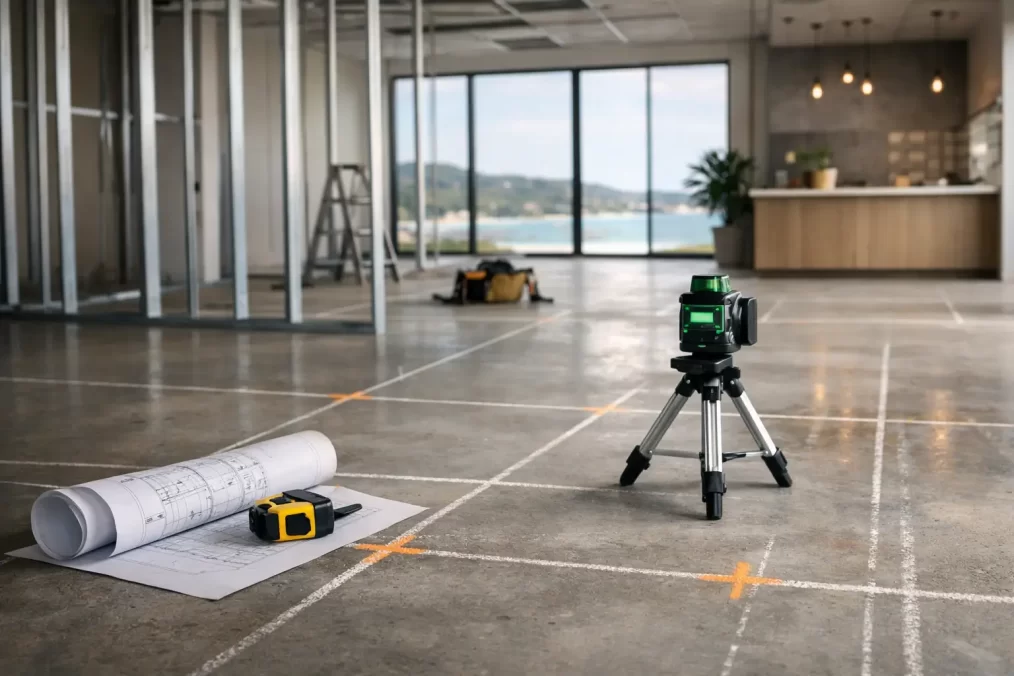

Terrigal Commercial Fitout Set-Out Example
A commercial fitout can look straightforward on a floor plan: new partitions, a reception desk, consulting rooms, joinery and signage. On site, those elements must fit a real tenancy with existing columns, uneven walls, services, fire requirements and often a fixed shopfront. This Terrigal commercial fitout set-out example shows how a survey-led set-out process turns approved dimensions into reliable marks for the builder and trades.
The example is illustrative rather than a record of a specific project. Its purpose is to show architects, builders, project managers and commercial tenants what should be resolved before framing starts. Good set-out is not simply putting paint marks on a slab. It establishes a dependable reference system so each trade is working from the same positions and levels.
The project brief and existing tenancy
Assume a ground-floor tenancy in Terrigal is being converted into a professional services office. The approved layout includes a glazed entry, reception counter, six offices, a meeting room, accessible amenities and a staff kitchenette. The builder has a construction programme with demolition complete and partition framing due to start within days.
The architectural plan gives clear internal dimensions, but the building itself presents constraints. The external wall is not perfectly parallel with the tenancy boundary. A structural column sits close to a proposed corridor. Existing hydraulic penetrations and electrical conduits need to remain accessible. The ceiling grid also influences where walls, bulkheads and door heads can practically land.
Before any fitout line is marked, the surveyor needs to understand which elements are fixed and which dimensions govern the design. For this type of job, the controlling references might be the centreline of the shopfront mullions, structural gridlines, existing concrete columns, the tenancy boundary or a nominated datum on the base building drawings. It depends on the project documentation and the accuracy of the available information.
Commercial fitout set-out example: establishing control
The first task is to establish site control that is stable, accessible and meaningful to the build. A surveyor uses calibrated equipment, commonly including Trimble total station technology, to observe existing building features and create a consistent coordinate system. Temporary control marks may be placed where they will not be disturbed by demolition, framing or floor preparation.
For this example, the surveyor adopts two structural column centre points and the shopfront line as independent checks. The proposed reception front is then set at a specified offset from the shopfront, while the main corridor is positioned from the structural grid. This approach reduces the risk of a small error at one wall being carried through every room.
Levels are equally important. The fitout drawings may nominate finished floor level, ceiling heights, accessible thresholds and joinery heights. A level check can identify whether the existing slab has variation that affects the reception plinth, glazed partitions or the transition at an entry. If the slab is out of tolerance, the builder and designer can address it before fixed joinery is manufactured.
A registered surveyor’s role is to provide precise positional information. Design decisions, building certification, fire compliance and trade coordination remain matters for the relevant designer, certifier, builder and specialists. Clear communication between those parties is what makes the survey data useful.
Example set-out points
Once control is confirmed, the surveyor marks the elements the builder needs to establish the fitout accurately. Rather than attempting to mark every future component, the set-out focuses on primary lines and points that can be extended by the construction team.
In this office example, the marked information may include the reception corner points, the centreline of the main corridor, partition wall faces, door opening locations, corners of the accessible bathroom, and grid intersections for the meeting-room glazing. Offset marks are often placed away from the wall line itself so they remain available after tracks are fixed and plasterboard is installed.
Each point should be identifiable on a set-out sketch or supplied coordinates. A simple notation system matters. If a mark is labelled ambiguously, or a line is not tied to a drawing revision, even accurate fieldwork can be misinterpreted. The builder should confirm that the current architectural issue is the drawing used for set-out before work begins.
Why the reception and corridor control the layout
Reception areas frequently reveal problems first because they combine visible finishes, joinery, glazing, floor finishes and access requirements. If a reception counter is set from a wall that later moves to avoid a service riser, the entry circulation can quickly become tight. Setting it from verified control and checking the clearance to the shopfront gives the project team a practical reference before fabrication.
The main corridor is another high-value line. It influences door swings, office widths, accessible circulation and the alignment of glazing. In a narrow tenancy, a 20 millimetre movement may be insignificant for one room but critical where clearances are already close to the design minimum. The right response is not to move walls in the field without consultation. It is to identify the conflict early, measure it accurately and obtain direction from the design team.
This is where a commercial set-out differs from a basic tape measure layout. Tape measurements remain useful for day-to-day construction, but they can accumulate error when taken from walls that are themselves not square or from features that have shifted during demolition. Survey control gives the builder a reliable baseline when details need to be checked.
A practical sequence from mark-out to verification
For a fitout with a compressed programme, set-out should be planned around the build sequence. The initial visit is usually most effective after demolition has exposed the relevant structure but before tracks, framing and services rough-in make the floor difficult to access. If an existing condition differs materially from the drawings, the surveyor can capture the information needed for the architect or project manager to resolve it.
After the initial mark-out, the builder installs primary tracks and partitions. A verification survey can then check critical wall lines, door openings and high-visibility elements such as the reception and glazing. This second check is particularly valuable before custom joinery, stone tops, glazing panels or feature ceilings are ordered. These items are costly to alter and their lead times can put pressure on completion dates.
Not every small commercial job needs multiple survey visits. A simple open-plan tenancy with minimal joinery may only require primary control and set-out. A medical suite, hospitality venue or office with curved walls, detailed glazing and tight accessibility requirements will usually benefit from staged checks. The scope should reflect the complexity, programme, tolerance requirements and consequences of rework.
Information to have ready before booking set-out
A faster, cleaner site visit starts with the right information. The current architectural plan should show dimensions, revision number and a clear scale. Reflected ceiling, hydraulic, electrical, fire and joinery drawings are useful where they affect the position of walls or penetrations. The builder should also advise whether there are base-building control marks, restricted access times, after-hours work requirements or known service constraints.
It also helps to nominate one person who can answer practical questions on site. Where a drawing dimension conflicts with an existing structural element, the surveyor can identify and document the issue, but should not be asked to make an unapproved design change. Quick direction from the project manager or architect prevents avoidable downtime.
For commercial clients, accurate set-out is a programme-control tool as much as a measurement service. It allows framing, services, glazing and joinery trades to begin from a common reference, while giving the design team an early opportunity to address site conditions that do not match the plan.
Before the first partition track is fixed, ask whether the key walls, openings and finished levels are tied to verified site control. A short check at that point can protect the layout, the programme and the finish of the completed space.
